Service Port Valve Core - Removal

REMOVAL

WARNING:
Refer to the applicable warnings and cautions for this system before performing the following operation and. Failure to follow these instructions may result in serious or fatal injury.





NOTE:

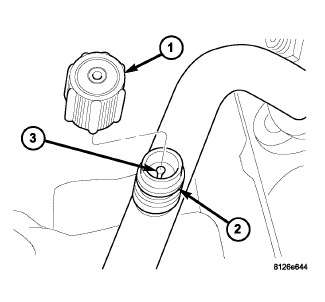

Typical A/C service port shown.

1. Remove the protective cap (1) from the service port (2).

2. Recover the refrigerant from the refrigerant system Refrigerant System Recovery.

3. Using a Schrader-type valve core tool, remove the valve core (3) from the service port.

4. Install a plug in, or tape over the opened service port(s).
