Water Pump - Assembly

ASSEMBLY






1. Thoroughly clean all gasket mating surfaces before assembling.

2. Inspect water pump and components for any damage. Water Pump - Inspection

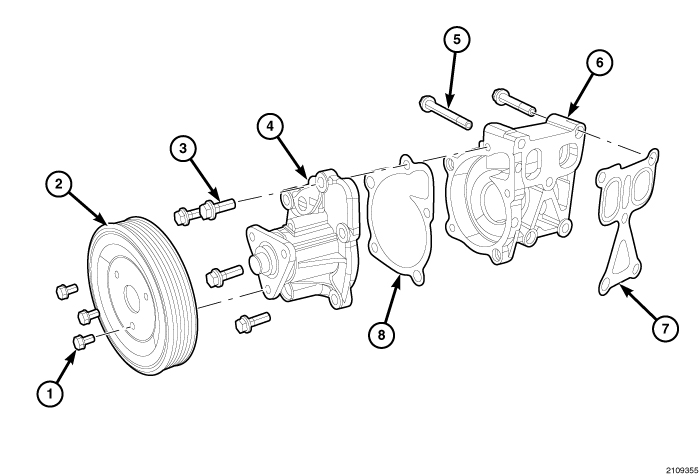

3. Using bolts (3), install the water pump (4) and gasket (8) to the water pump adapter (6). Tighten the bolts (3) to 22 N-m (16 lbs. ft.)

4. Using bolts (1), install the water pump pulley (2) to the water pump (4). Tighten the bolts (1) to 9 N-m (80 lbs. in.)

5. Using bolts (5), install the water pump assembly and gasket to the engine block. Tighten the bolts to 24 Nm (18 lbs. ft.). Water Pump - Installation

6. Start the engine and check for leaks. Component Tests and General Diagnostics
