Home >> Chrysler >> 2013 >> 200 V6-3.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Diagnosis - Lubrication

Engine Diagnosis - Lubrication

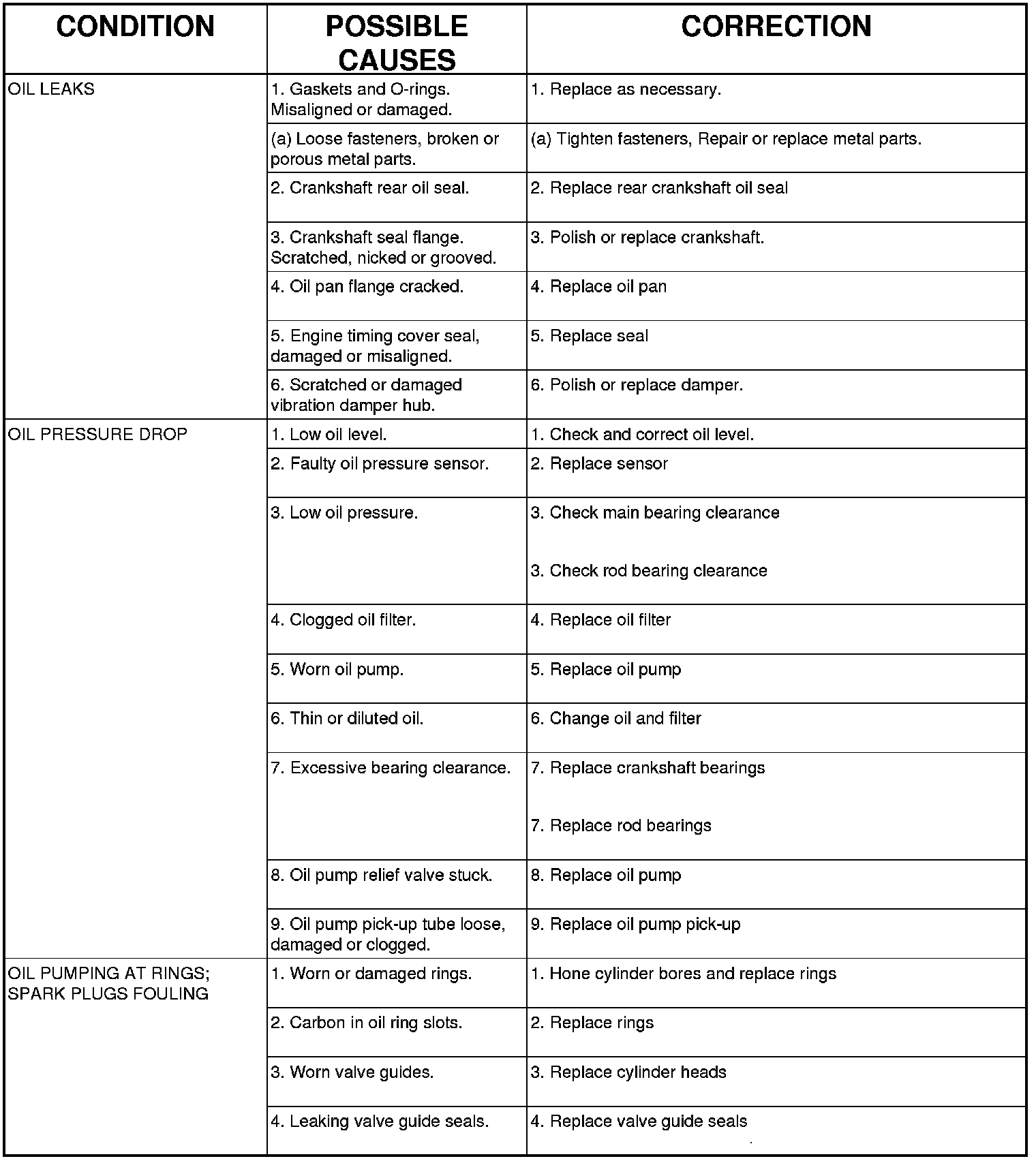

ENGINE LUBRICATION DIAGNOSTIC TABLE
