Piston Oil Cooler Jet - Removal

REMOVAL






NOTE:
Piston oil cooler jet for cylinders one/two shown. Piston oil cooler jets for cylinders three/four and five/six are similar.

1. Remove the crankshaft Crankshaft - Removal.

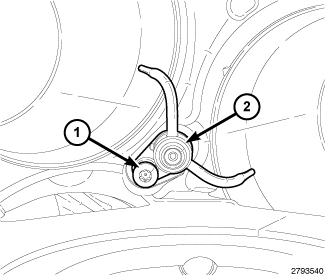

2. Remove the bolt (1) and the piston oil cooler jet(s) (2) from the engine block.

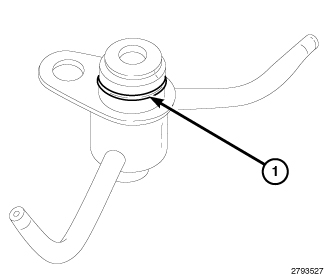

3. Remove and discard the O-ring seal (1) from the piston oil cooler jet(s).
