Engine Block Heater - Removal

3.6L

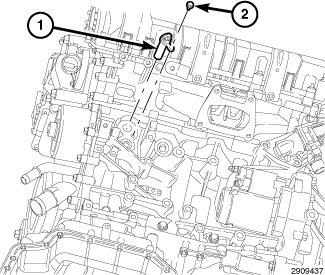

1. Remove the A/C compressor (1) and position aside. A/C Compressor - Removal.





2. Disconnect the power cord plug from block heater.

3. Loosen screw (2) from the heater. Remove block heater assembly (1).
