Water Pump Inlet Tube - Removal

REMOVAL

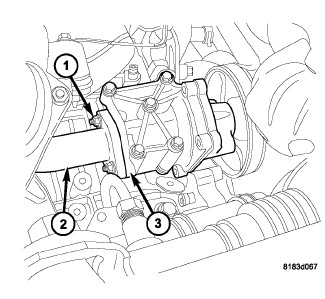

The water pump inlet tube (2) connects the water pump to the coolant adapter. This tube is sealed by an O-ring and held in place by fasteners to the water pump housing.

1. Drain cooling system Service and Repair.

2. Remove the coolant adapter and secondary thermostat Engine Coolant Thermostat - Removal.

3. Raise and support vehicle.

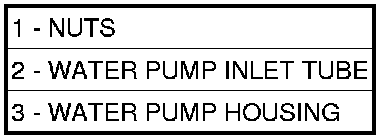

4. Remove inlet tube mounting nuts (1).

5. Remove inlet tube (2).
