Decklid Weatherstrip







DECKLID WEATHERSTRIP






1. Place convertible top in vertical position and decklid into service position, Convertible Top - Description.

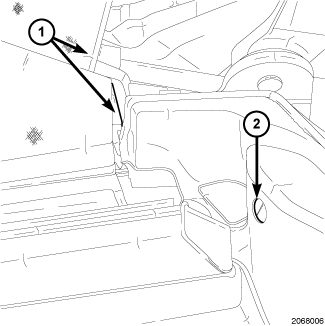

2. Remove four fasteners (1), two on each side.





3. Remove push pins (2), one on each side.

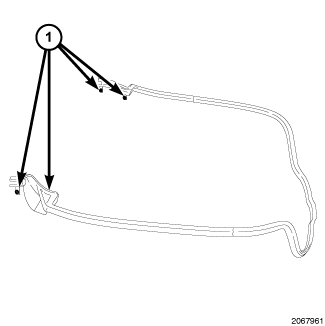

4. Carefully pull off weatherstrip.

5. Clean residue left behind from the weatherstrip.
