Tonneau Extended Switch - Removal

REMOVAL






1. Put decklid in the service position, Procedures.

2. Using the tonneau power switch, manually activate the tonneau drive motor to the fully retracted position.

3. Disconnect and isolate the battery negative cable.

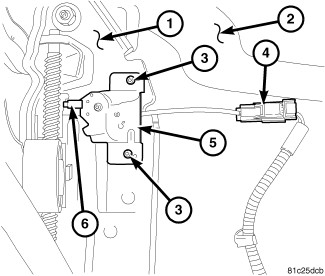

4. Disconnect the tonneau extended limit switch electrical connector (4).

5. Remove the two switch retaining screws (3).

6. Separate the switch (5) from the four bar linkage (1) and remove it from the vehicle.
