Sedan

REMOVAL






1. Remove the seat from vehicle. Service and Repair

2. Remove the seat back.

3. Disconnect the heated seat connector, if equipped.

4. Remove the seat wire harness from the seat pan.

5. Remove the seat cushion bolts (1) and remove the seat cushion from the adjuster.





6. Disengage the J-hook attaching the seat cover to the seat cushion pan.

7. Carefully remove the seat cushion cover and foam from the seat pan.

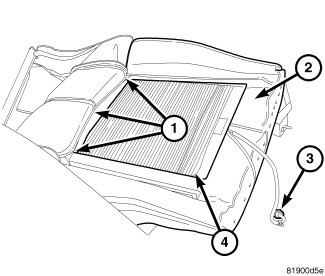

8. Carefully pull the cover off of the seat to the hog rings (1).

9. Cut the hog rings attaching the seat cover to seat cushion foam.

10. Remove seat cushion cover from the foam.
