Sunroof Motor - Removal

REMOVAL










1. Remove headliner. Headliner - Removal

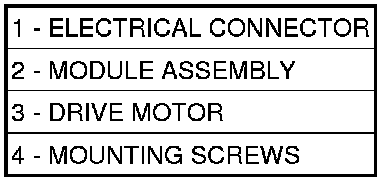

2. Disconnect the electrical connector (1).

3. Remove three motor assembly attaching screws (4) from bottom side of motor assembly (3) and remove motor assembly from the motor bracket.
