Sunroof - Description

DESCRIPTION

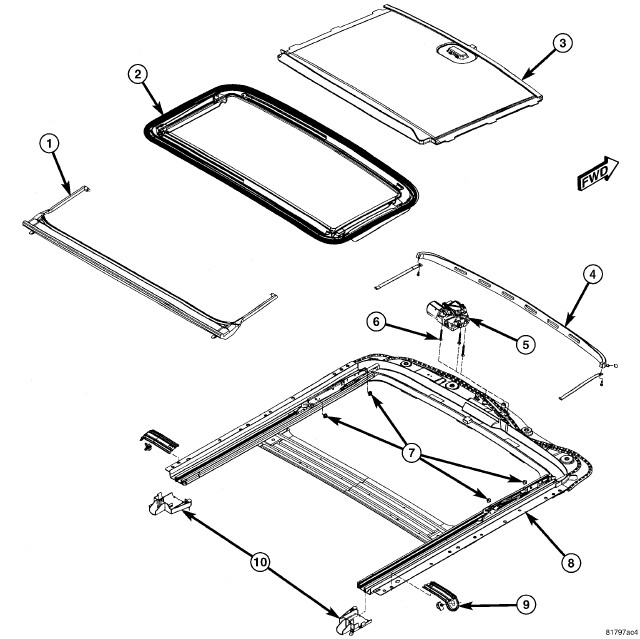

Figure 1 - EXPLODED VIEW

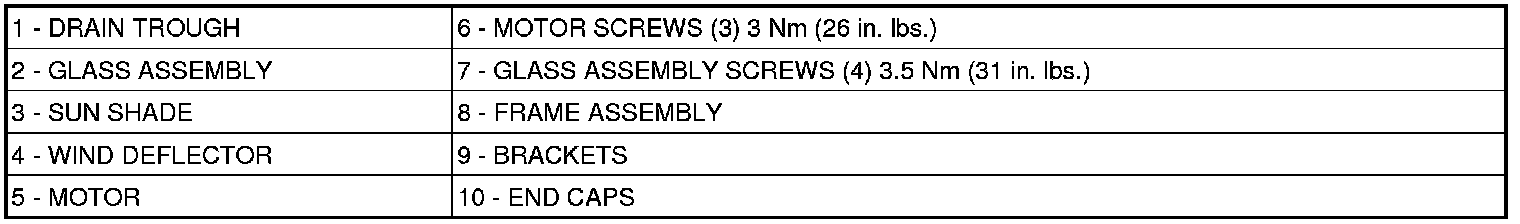

SUNROOF ASSEMBLY BREAKDOWN






WARNING:
Keep fingers and other body parts out of sunroof opening at all times.

The sunroof features a power sliding glass panel and a sunshade which can be manually positioned anywhere along its travel, rearward of glass panel front edge.
