Rear Bracket - Removal

REMOVAL






1. Remove the front trunk carpeted panel.

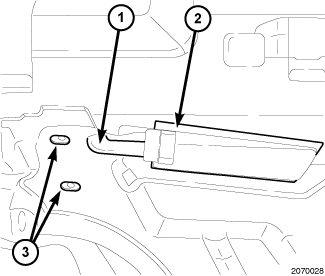

2. Remove the mounting fasteners (3) from the rear bracket (1).

3. Using a grease pencil or equivalent, mark the position of the rear bracket to aid in installation.

4. Remove the rear bracket from the vehicle.
