Plate - Installation

INSTALLATION

GUIDE PLATE

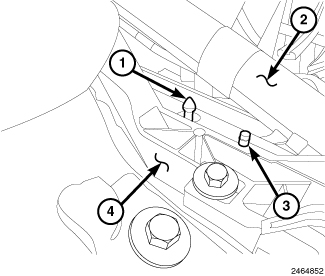

1. Position the primary hinge guide plate (1).

2. Install and secure the guide plate fasteners.

3. Install the primary hinge assembly (4), Convertible Top Primary Hinge - Installation.

SLIDING "Z" REINFORCEMENT PLATE

1. Position the sliding "Z" reinforcement plate (3) on the underside of the primary hinge.

2. Install and secure the reinforcement plate fasteners.

3. Install the primary hinge assembly, Convertible Top Primary Hinge - Installation.
