DeckBar

DECKBAR

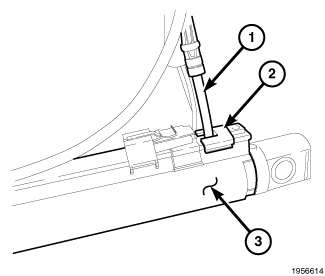

1. At the hydraulic cylinder, insert the line end and slide the retaining clamp around the line end.

NOTE:
Take care not to contaminate the hose and cylinder between removal and installation.

2. Install the hall effect to the left cylinder. Power Top Switch - Installation.





3. Attach the cylinder (1) onto the deckbar and install the cylinder mounting plate fasteners (2).










NOTE:
Make sure to close (2) the hydraulic pump valve. The pump valve will be oriented horizontally when closed.

4. Install the spare tire cover/floor of the trunk.

5. Install the rear and side trunk trim panels. Trunk Trim Panel - Installation.

6. Connect the battery negative remote cable.

7. Close the decklid conventionally.

8. Cycle the system several times and follow the procedure to check fluid level. Service and Repair.
