Hinge Cover - Removal

REMOVAL






1. Remove the front and mid/rear headliners as necessary. Convertible Top Headliner - Removal.

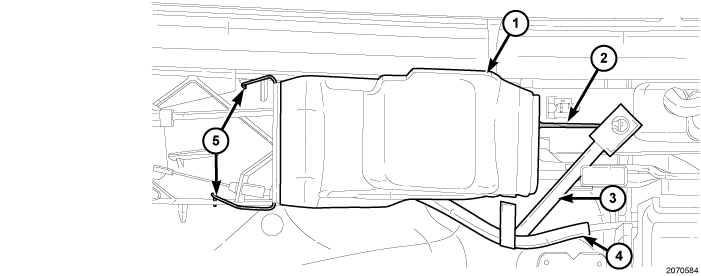

2. Disengage the lower metal retainer (2) from the side rail and remove the strap (3) from the cable (4).

3. By squeezing the front retainers (5), disengage the front of the hinge cover (1) from the side rail.

4. Remove the hinge cover from the side rail.
