Forward Decklid Latch Striker - Removal







REMOVAL

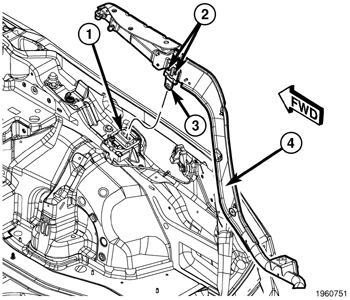

1. Place the decklid in the reverse decklid position. Convertible Top - Description.

2. With a grease pencil or equivalent, mark the striker (3) location on the deckbar (4).

3. Remove the mounting fasteners (2) and remove the striker from the deckbar.
