Remote Keyless Entry Antenna - Removal







REMOVAL






1. Disconnect and isolate the battery negative cable.

2. Remove the instrument panel top pad. Instrument Panel Pad - Removal.

3. Disconnect the electrical connectors.

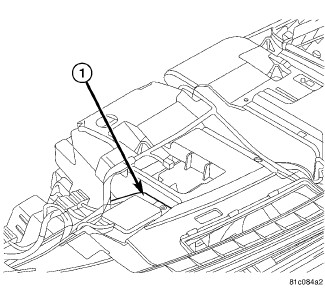

4. Remove the remote keyless entry antenna.
