Rear Grab Handle - Removal







REMOVAL






NOTE:
If replacing the inside handle, transfer the window switch (if equipped) Power Window Switch - Removal .

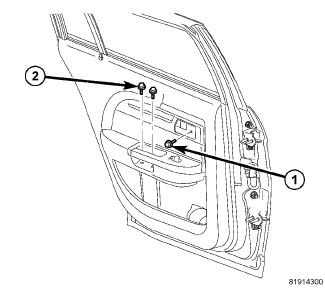

1. Remove three screws to handle, one under the handle and two hidden beneath a trim panel inside handle (2).

2. Pull handle up from trim panel.

3. Disconnect the window switch (if equipped).
