Carpet - Removal

REMOVAL






1. Remove door sill trim. Scuff Plate - Removal

2. Remove rear seat cushion. Front Seat Cushion Cover - Removal

3. Remove front seats. Service and Repair

4. Remove amplifier on passenger side of floor pan, if equipped.

5. Remove B-pillar trim panels as necessary to clear carpet.

6. Remove cowl trim panels. Cowl Trim Panel - Removal

7. Remove center console. Shifter Housing - Removal

8. Pull carpet from behind brake pedal, accelerator pedal, and HVAC.

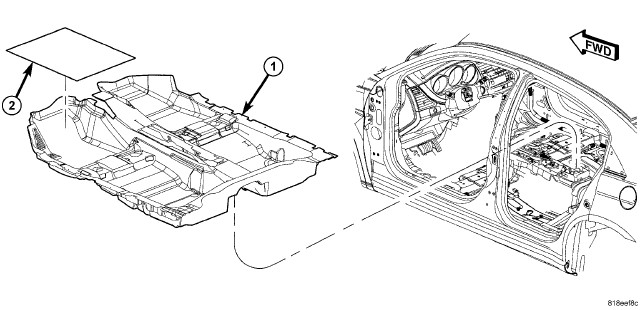

9. Fold carpet (1) to center of vehicle.

10. Remove carpet (1) from vehicle through passenger door opening.
