Front Crossmember Isolator - Installation

INSTALLATION

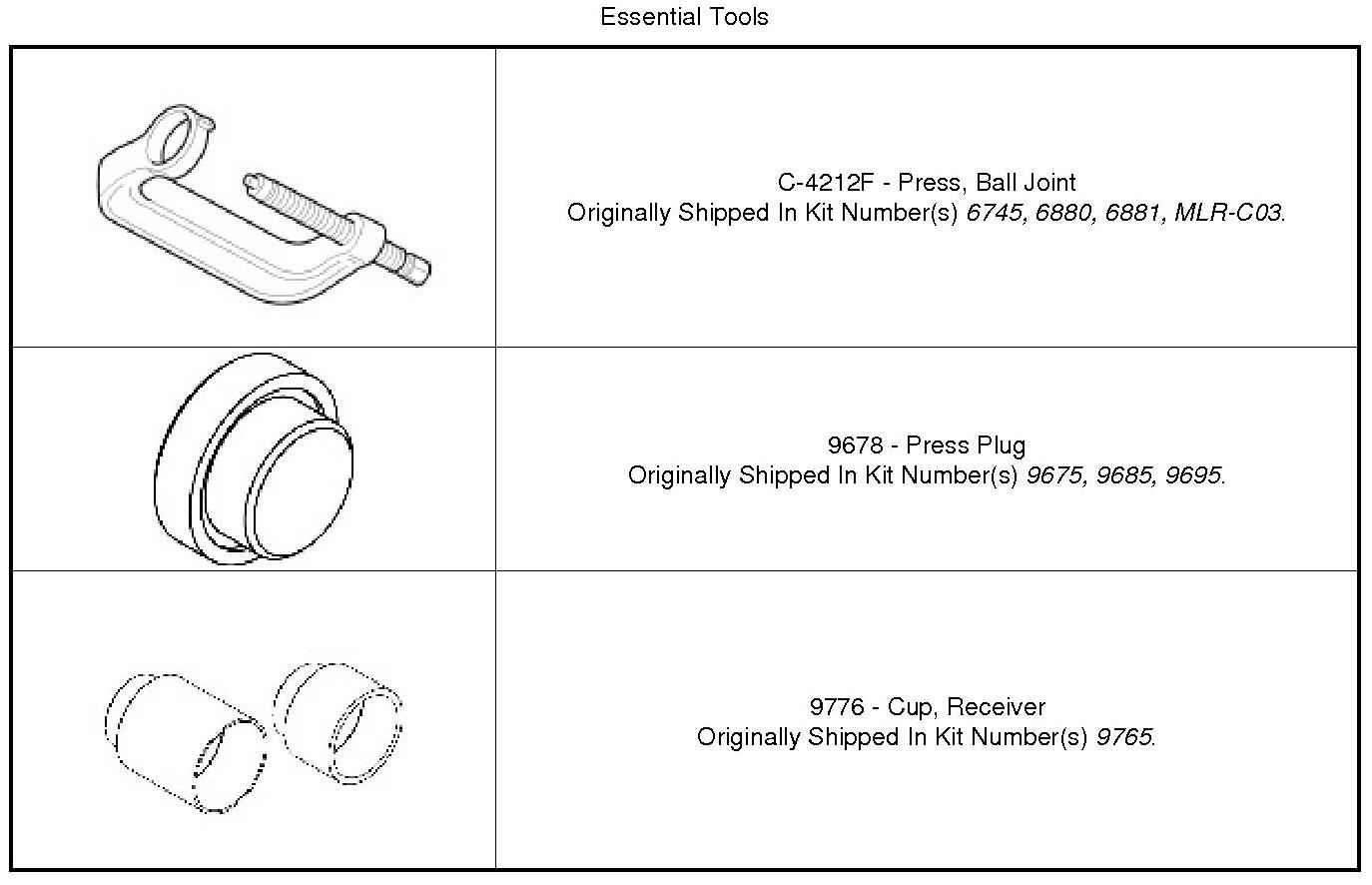

Special Tools:











NOTE:
Prior to using special tools, lubricate Press, Ball Joint (C-4212F) (1) threads to provide ease of use and promote tool longevity.

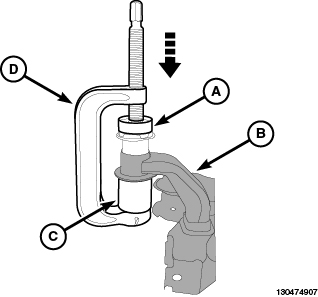

1. Assemble tools over isolator crossmember assembly as shown:
(9678)
Crossmember
(9776)
(C-4212F)

2. Tighten Press, (D) screw-drive, pressing isolator into crossmember (B). Install isolator until isolator can flange contacts surface of crossmember.
3. Install the crossmember.
