Front Door Carrier Plate - Removal

REMOVAL






1. Remove trim panel. Front Door Trim Panel - Removal

2. Remove glass. Front Door Glass - Removal

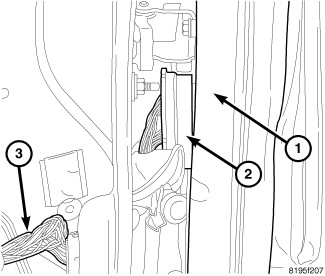

3. Disconnect wire harness from A-pillar.

4. Disconnect power mirror connector.





5. Accessing through latch plug (2), disconnect latch and handle links.

6. Remove door latch fasteners from door shut face, Front Door Latch - Removal.

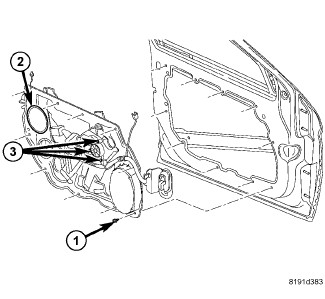

7. Remove ten carrier plate fasteners (1).

8. Remove carrier plate from door.
