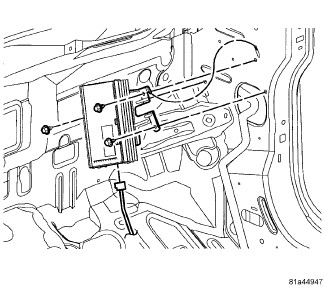

Amplifier - Removal







REMOVAL






1. Disconnect and isolate the battery negative cable.

2. Remove the cowl trim panel. Cowl Trim Panel - Removal.

3. Disconnect the wire harness connector.

4. Remove the amplifier mounting fasteners.

5. Remove the amplifier.
