U1110







U1110-LOST VEHICLE SPEED MESSAGE

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The Powertrain Control Module (PCM) receives the vehicle speed signal over the CAN C bus from the Anti-lock Brake Module.

- When Monitored:
Ignition on.

- Set Condition:

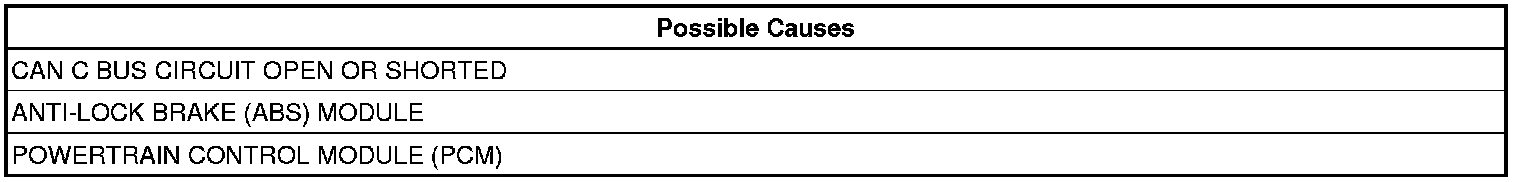

The PCM doesn't receive a vehicle speed signal from the Anti-Lock Brake Module over the CAN C bus.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. PCM Pre-Diagnostic Troubleshooting Procedure.

Diagnostic Test

1. ACTIVE DTC

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

1. Ignition on, engine not running.
2. With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the INTERMITTENT CONDITION diagnostic procedure. PCM Intermittent Condition Test.

2. U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM) ALSO ACTIVE
1. With a scan tool, select View DTCs.

Is the U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM) also set?

Yes

- Perform the U0141-Lost Communication with IPM (FCM/TIPM) diagnostic procedure. Totally Integrated Power Module (TIPM).

No

- Stored Lost Communication DTCs and perform the Stored Lost Communication DTCs diagnostic procedure.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
