C1002

C1002-BRAKE PEDAL SWITCH 1 CIRCUIT HIGH

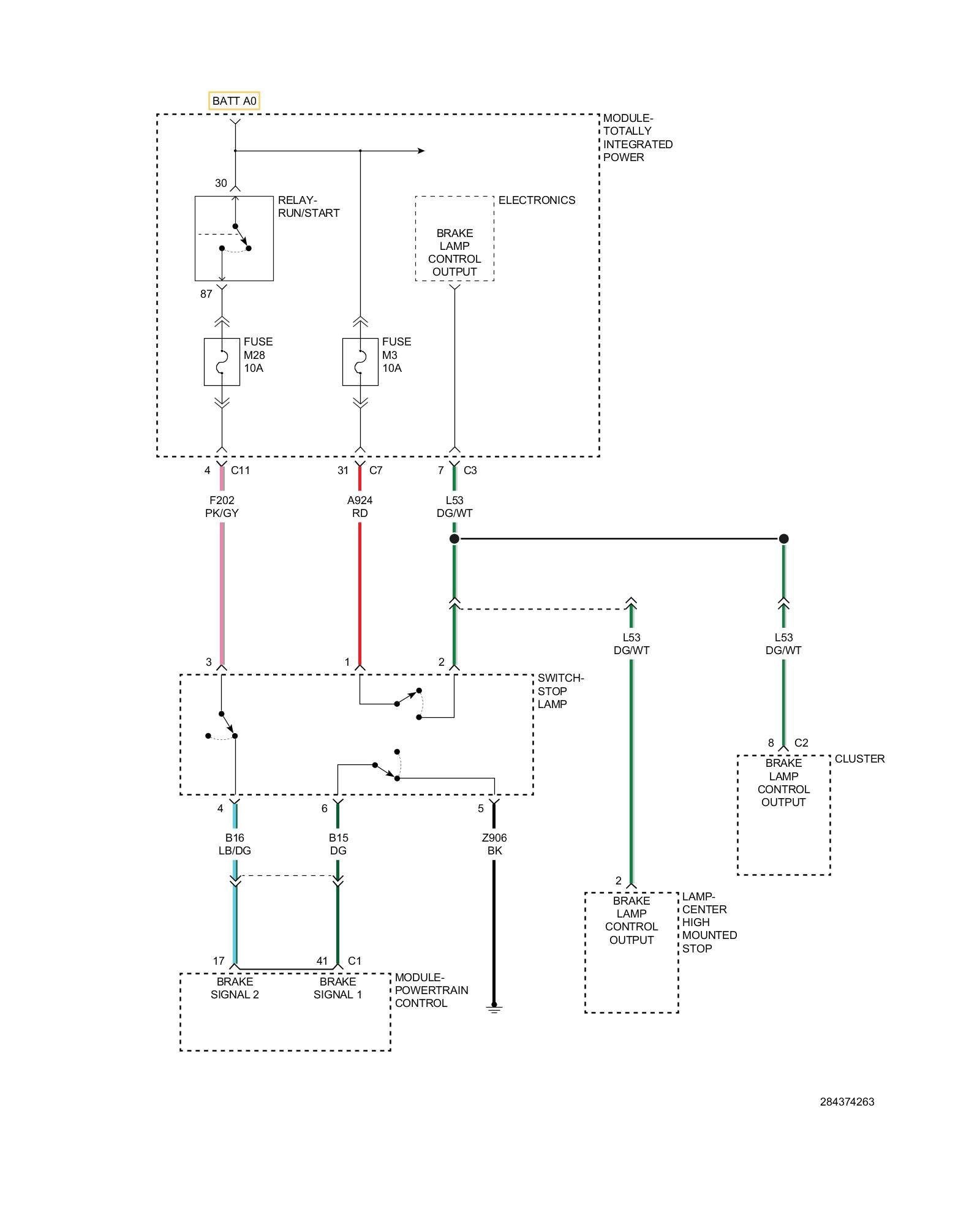

For a complete wiring diagram, refer to the Wiring Information.








- When Monitored:
Ignition off and all doors closed.

- Set Condition:
CAN Bus ready to go to sleep and brake input active for more than three minutes.

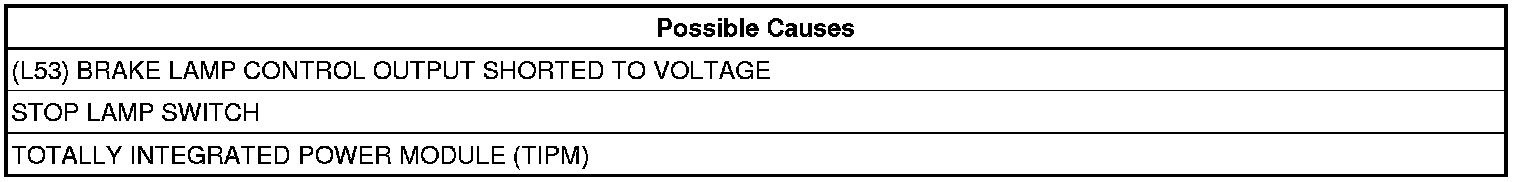

Diagnostic Test

1. CHECK FOR AN ACTIVE DTC

NOTE: If any Brake Switch DTCs are present in the PCM, diagnose those DTCs before continuing.

NOTE: Verify the Stop Lamp Switch is properly adjusted before continuing.

1. Ignition on, engine not running.
2. With a scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

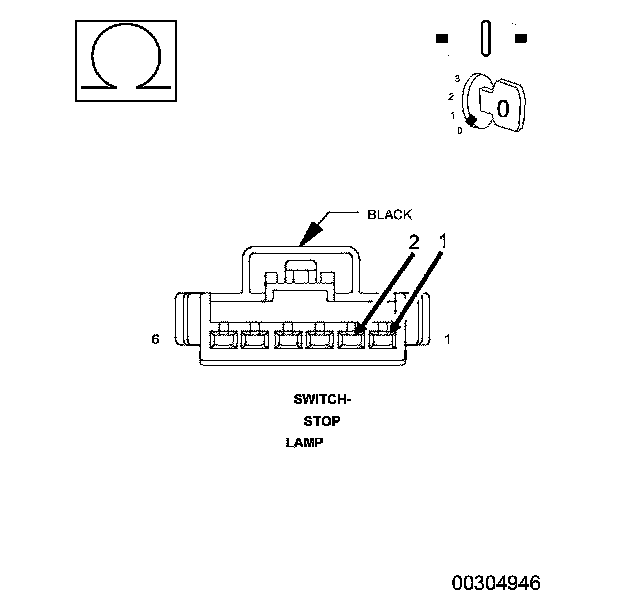

2. STOP LAMP SWITCH




1. Turn the ignition off.
2. Disconnect the Stop Lamp Switch.
3. Measure the resistance between the (A924) Fused B+ terminal and the (L53) Brake Lamp Control Output terminal in the Stop Lamp Switch.
4. Apply and release the brake pedal while monitoring the ohmmeter.

Does the resistance change from below 5.0 Ohms to an open circuit?

Yes

- Go To 3

No

- Replace the Stop Lamp Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

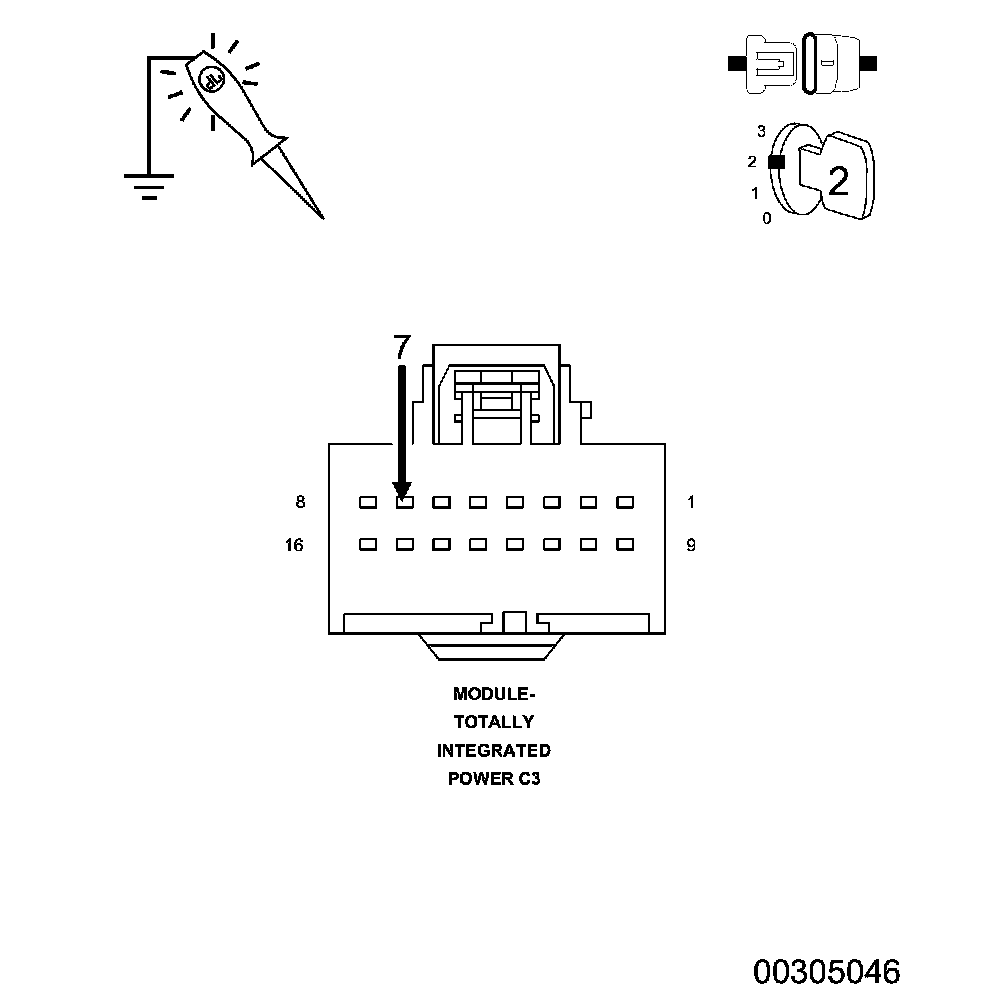

3. CHECK THE (L53) BRAKE LAMP CONTROL OUTPUT CIRCUIT FOR A SHORT TO VOLTAGE




1. Reconnect the Stop Lamp Switch.
2. Disconnect the Totally Integrated Power Module (TIPM) C3 harness connector.
3. Turn the ignition on.
4. Using a 12-volt test light connected to ground, check the (L53) Brake Lamp Control Output circuit in the Totally Integrated Power Module (TIPM) C3 harness connector while pressing and releasing the brake pedal several times.

Does the test light change from illuminated when the pedal is pressed to not illuminated when the pedal is released?

Yes

- Replace and program the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (L53) Brake Lamp Control Output circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
