Output Shaft Seal - Installation

REAR WHEEL DRIVE

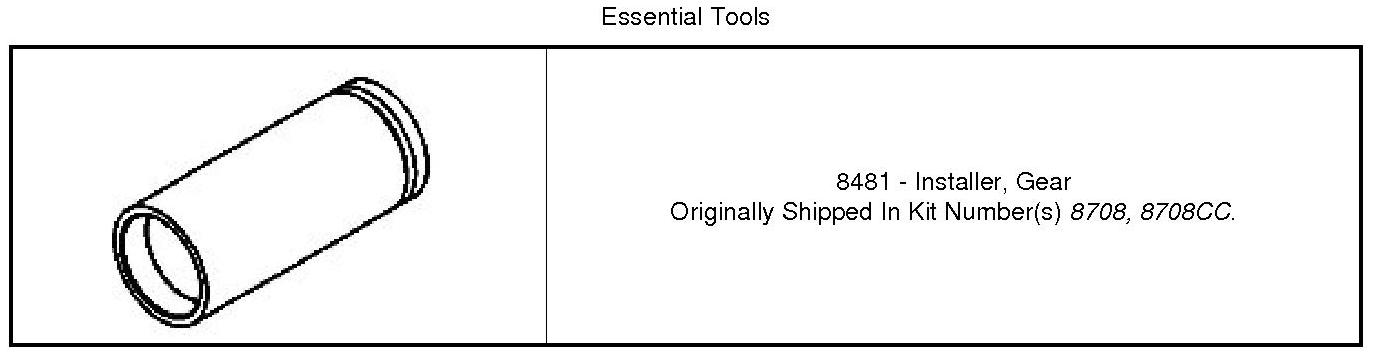

Special Tools:






CAUTION: The seal must be installed flush with the case. Driving the seal deeper could damage the seal causing a leak.

1. Position the new output shaft seal over the output shaft and against the transmission case.
2. Using (8481) install the output shaft seal.
3. Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut.
4. Install the propeller shaft flange onto the output shaft and install an new flange nut. Tighten the nut, with a 34 mm 12 point socket, to 60 Nm (44 ft.lbs.).
5. Stake the nut.
6. Install the propeller shaft Propeller Shaft - Installation
7. Perform the CHECK OIL LEVEL procedure . Check Oil Level
