Engine Controls - DTC P0441 Evap Purge System Stored
NUMBER: 18-008-12GROUP: Vehicle Performance
DATE: February 09, 2012
HELP USING THE wiTECH DIAGNOSTIC APPLICATION FOR FLASHING AN ECU IS AVAILABLE BY SELECTING "HELP" THEN "HELP CONTENTS" AT THE TOP OF THE wiTECH DIAGNOSTIC APPLICATION WINDOW.
THE wiTECH SOFTWARE LEVEL MUST BE AT RELEASE 12.02 OR HIGHER TO PERFORM THIS PROCEDURE.
SUBJECT:
Flash: MIL Illumination P0441 - Evap Purge System Performance
OVERVIEW:
This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software.
MODELS:
2012 (LC) Challenger
2012 (LD) Charger
2012 (LX) 300
NOTE:
This bulletin applies to LC, LD and LX vehicle equipped with a 5.7L engine (sales code EZH or EZC) built before January 17, 2012 (MDH 0117XX).
SYMPTOM/CONDITION:
The customer may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further investigation the Technician may find that P0441 - Evap Purge System Performance has been set active or stored.
Updating the software will correct the conditions listed above.
DIAGNOSIS:
Using a Scan Tool (wiTECH) with the appropriate Diagnostic Procedures available in TechCONNECT, verify all engine systems are functioning as designed. If DTC's other then the ones listed above are present record them on the repair order and repair as necessary before proceeding further with this bulletin.
If the customer describe the symptom/condition or if the technician finds the DTC, perform the Repair Procedure.

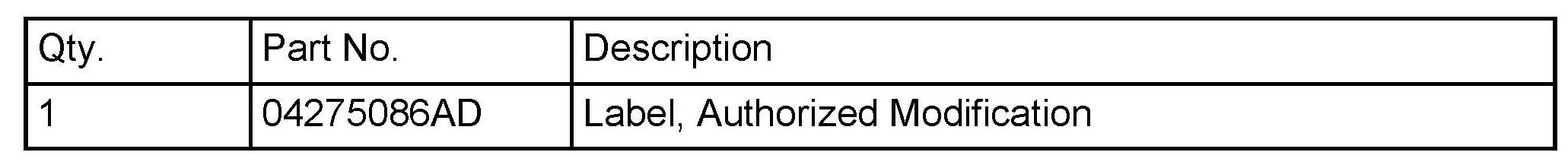

PARTS REQUIRED:
REPAIR PROCEDURE:
NOTE:
Install a battery charger to ensure battery voltage does not drop below 13.2 volts. Do not allow the charging voltage to climb above 13.5 volts during the flash process.
NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.
1. Reprogram the PCM with the latest software. Follow the detailed service procedures available in DealerCONNECT/TechCONNECT, Refer To Group 8 - Electrical > Electronic Control Modules - Service Information > Module - Powertrain Control > Standard Procedures > PCM/ECM Programming.
2. After PCM reprogramming, the following must be performed: clear any DTC's that may have been set in other modules due to reprogramming. The wiTECH application will automatically present all DTCs after the flash and allow the tech to clear them.
3. Type the necessary information on the "Authorized Modification Label and attach it near the VECI label.
POLICY:
Reimbursable within the provisions of the warranty.

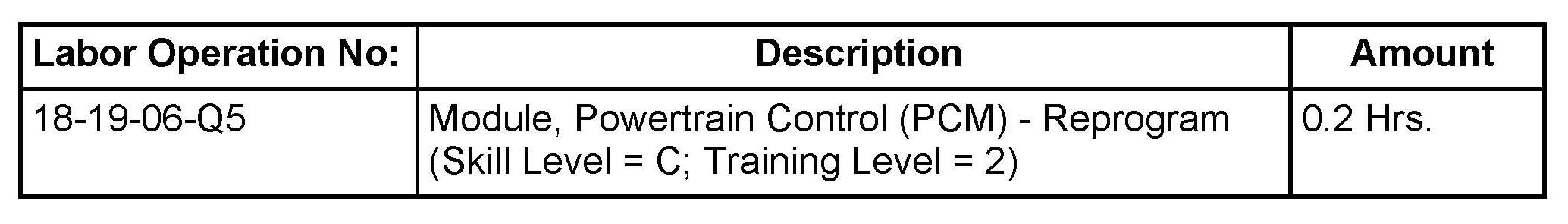

TIME ALLOWANCE:

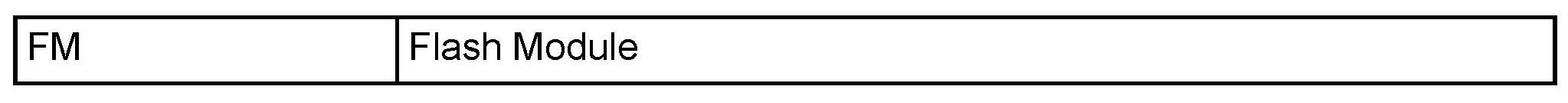

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
