Intake And Exhaust Valves - Removal

REMOVAL

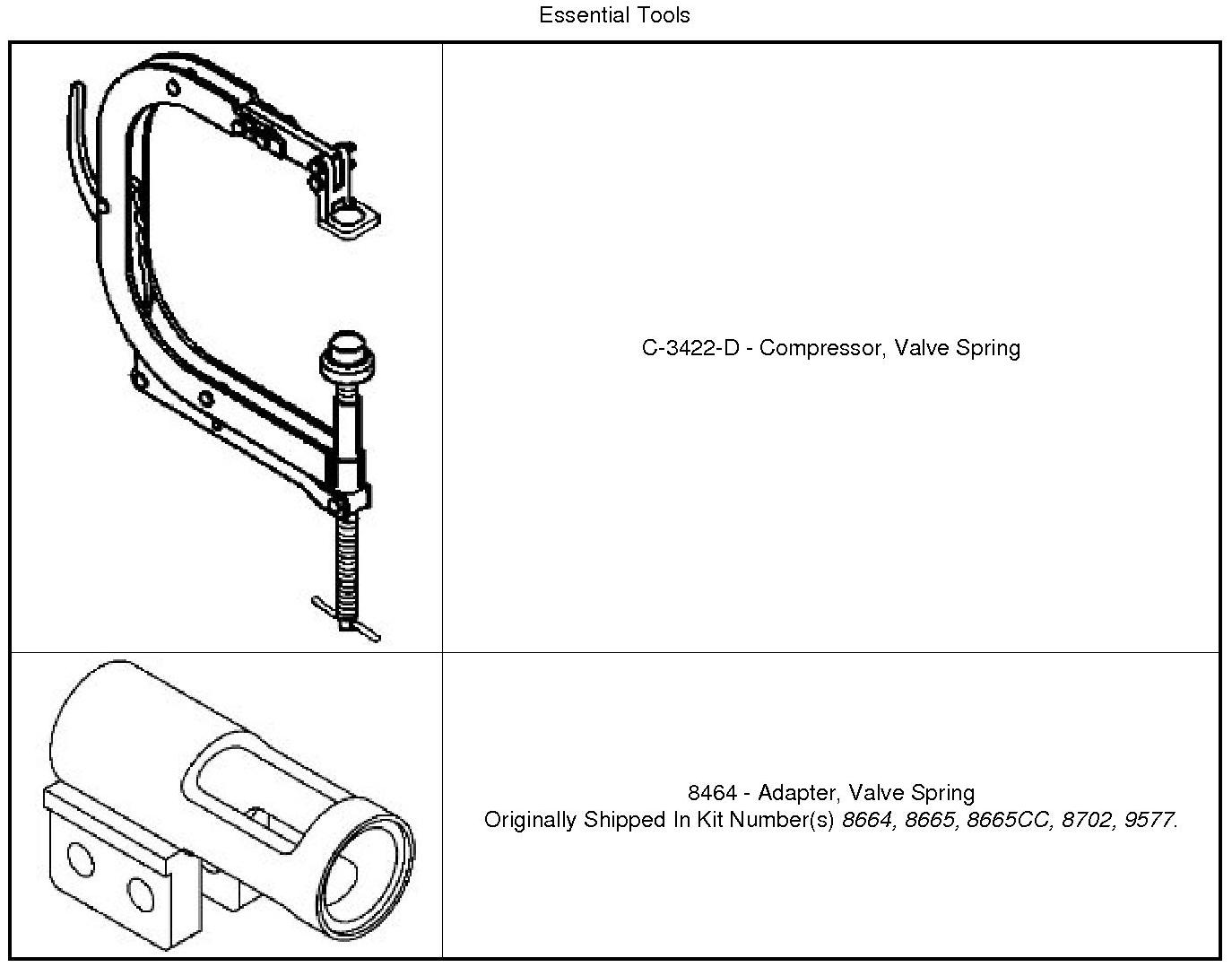

Special Tools:






1. Remove the cylinder head Cylinder Head - Removal.
2. Compress valve springs using Valve Spring Compressor Tool and Adapter.
3. Remove valve retaining locks, valve spring retainers, valve stem seals and valve springs.
4. Before removing valves, remove any burrs from valve stem lock grooves to prevent damage to the valve guides. Identify valves to ensure installation in original location.
