Washer Nozzle - Installation

INSTALLATION

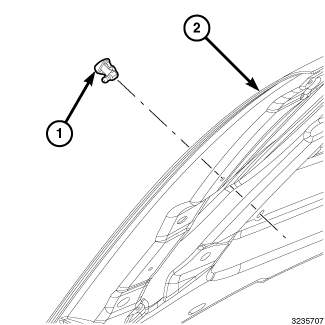

1. Position the washer nozzle (1) to the mounting hole on the outside of the hood panel (2).
2. Align the anti-rotation tabs of the nozzle with the anti-rotation notches in the mounting hole.
3. Using hand pressure, push firmly and evenly on the top of the washer nozzle until the integral latch features lock into place on the underside of the hood.
4. From the underside of the hood, reconnect the washer hose fitting to the barbed nipple of the nozzle.
5. Reinstall the push-in retainers that secure the rear edge of the hood silencer pad to the inner hood reinforcement.
