Differential Carrier Bearing - Removal






REMOVAL

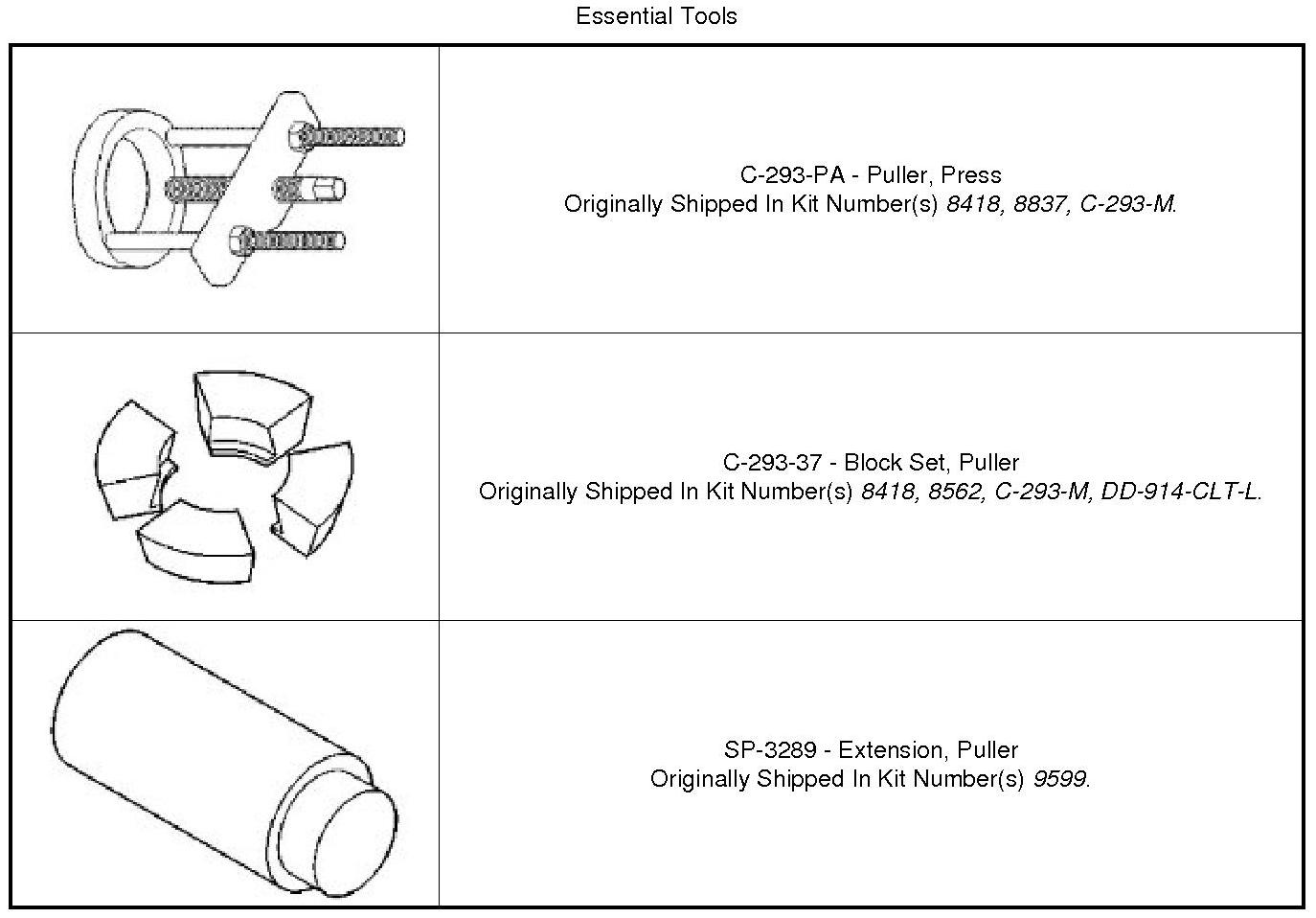

Special Tools:










1. Remove differential assembly from axle. Differential Carrier - Removal.

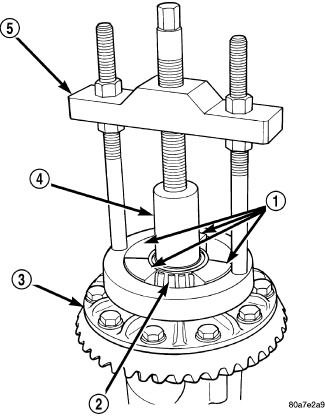

2. Remove bearings (2) from the differential case (3) with Puller/Press (5), Adapters (1) and Puller Extension (4).
