Differential Carrier - Removal

REMOVAL

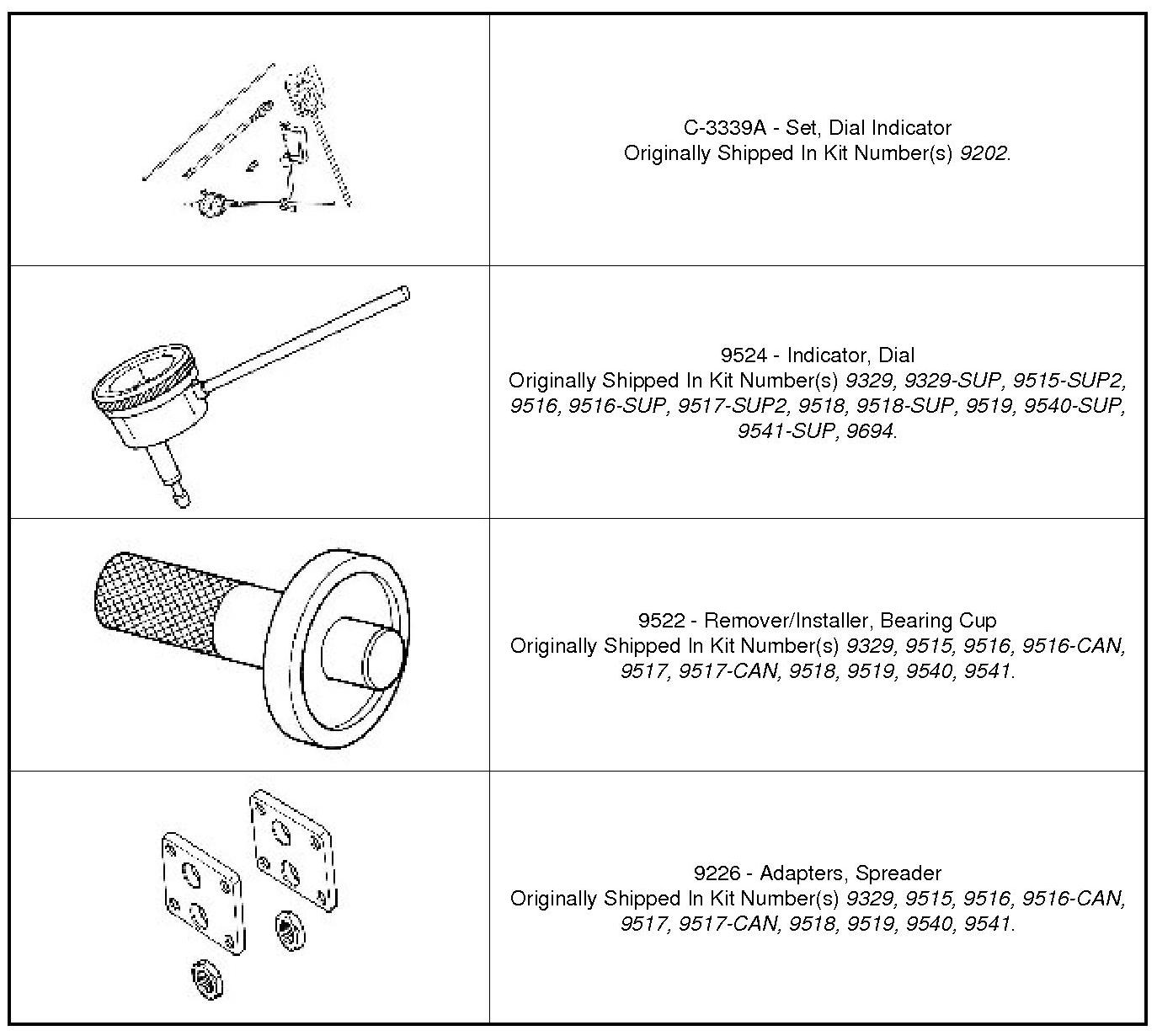

Special Tools:














1. Remove rear axle from vehicle Removal.
2. Clamp rear axle assembly into bench vise (1).

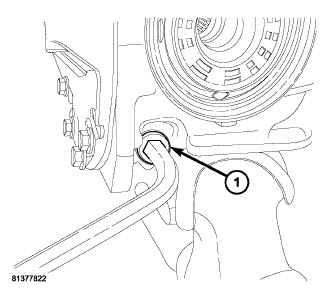

3. Remove drain plug (1) and drain fluid into container suitable for reuse.
4. Install drain plug and torque to 60 Nm (44 ft. lbs.).





5. Using suitable torque wrench (1), measure and record rear axle assembly total turning torque.

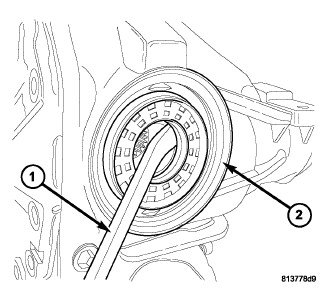

6. Using suitable screwdriver (1), remove both axle seals (2).





7. Remove twelve axle cover-to-housing bolts (1) and remove cover (2).





8. Install Universal Spreader Adapter Plates (1), and Spreader (2). Install a stud in the location shown. Mount Clamp to the stud, and install Post from dial indicator set into Clamp. Zero Metric Dial Indicator (3) in the location shown to measure axle housing spread.





9. Spread axle housing no more than 0.30 mm (0.012 in.).






NOTE: The differential side bearing snap rings are select-fit, and control ring gear backlash and differential side bearing preload. It is important to return original snap rings to their original position.

10. Using suitable snap ring pliers (2), compress and remove differential side bearing snap rings (1). Identify and tag for proper reuse.





11. Back off Spreader (1) to relax tension on housing.

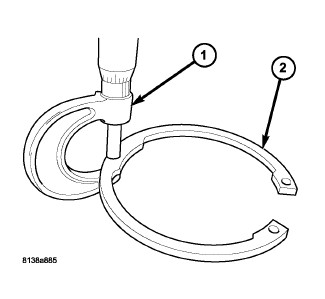

12. Measure snap ring thickness and record for future use.





13. Install Removal/Installation Arbor (1) into one side of housing and push inward to release differential side bearing cup (2) from opposite side. Repeat for other bearing.





14. Remove differential assembly from axle housing.

Note:

Note: If difficulty removing differential is encountered due to interference with Spreader and Spreader Adapter Plates , remove spreader and adapter plates to facilitate removal.
