Pinion Seal - Removal

REMOVAL

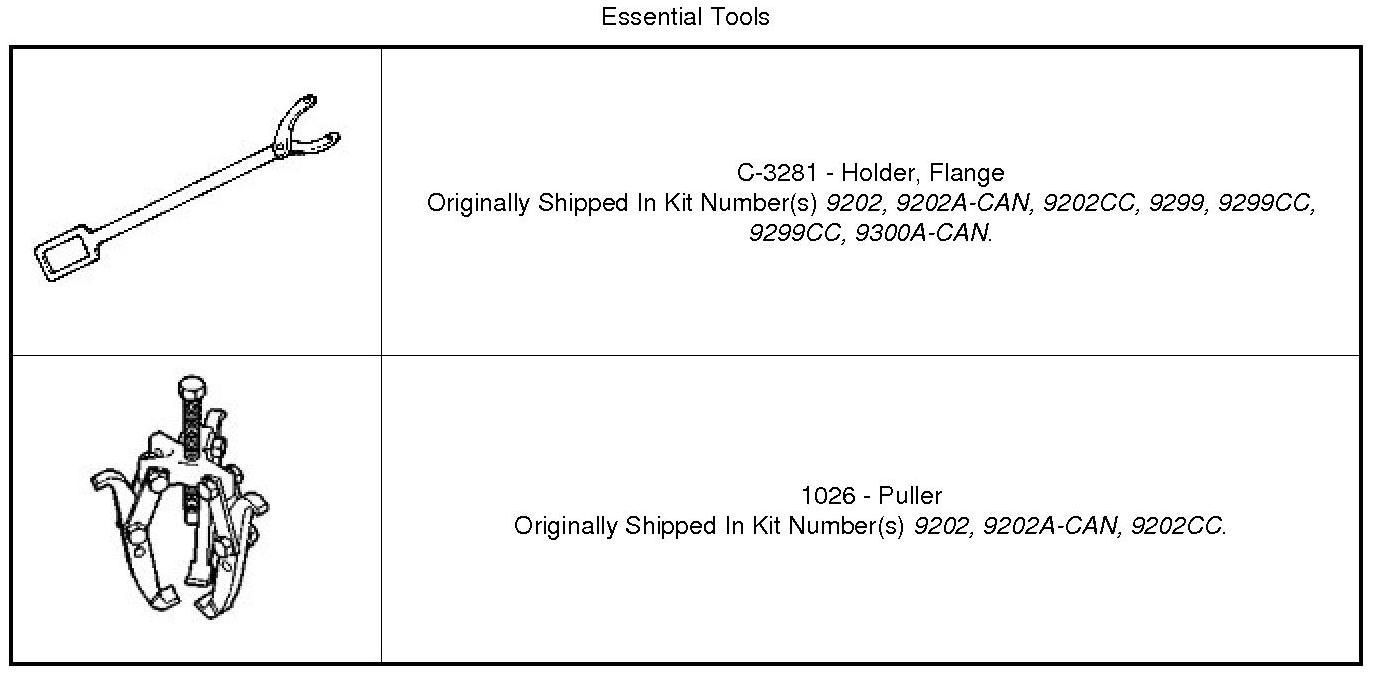

Special Tools:










1. Remove rear axle assembly from vehicle. Refer to Rear Axle Removal.
2. Measure axle assembly rotating torque and record measurement for reuse on assembly.





3. Using Flange Wrench (1) and 41mm socket, remove pinion flange nut and discard.






NOTE: Due to axle imbalance concerns, it is necessary to make sure pinion flange-to-shaft orientation is maintained. If alignment marks are not visible, apply appropriate marks before removing pinion flange.

4. Using Puller (1), remove pinion flange (2) from pinion shaft.





5. Using suitable tool (1), remove pinion seal (2) and discard.
