Axle Shaft Seal - Installation

INSTALLATION

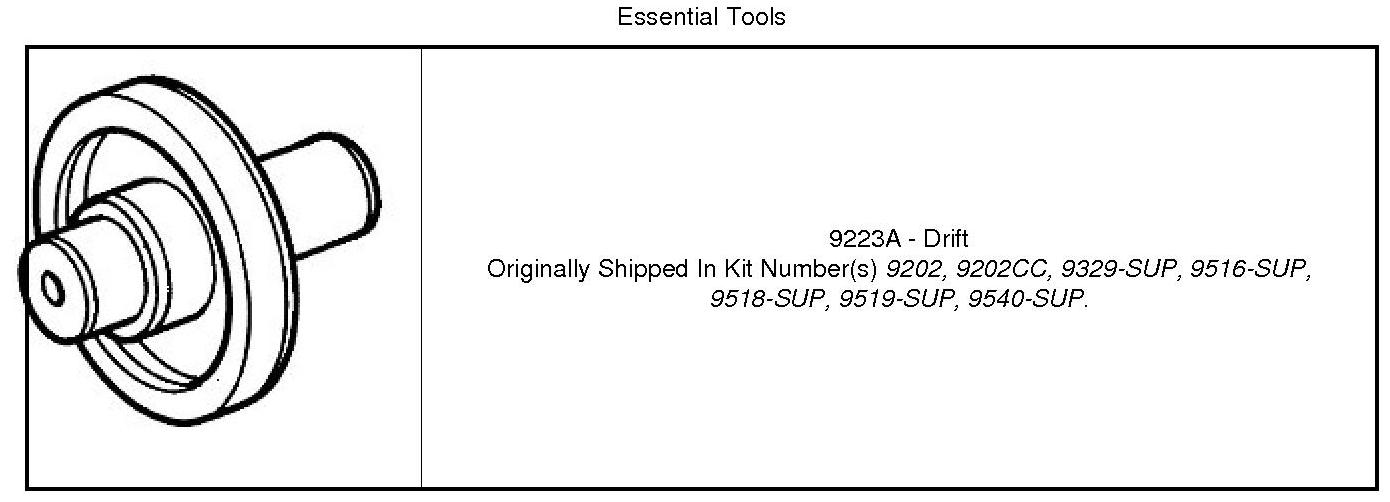

Special Tools:










1. Using Installer (2), install NEW axle shaft seal (1). Lubricate the inside diameter with Mopar(R) Gear and Axle Lubricant 75W-140 to protect seal during halfshaft installation.
2. Install halfshaft(s). Half Shaft - Installation

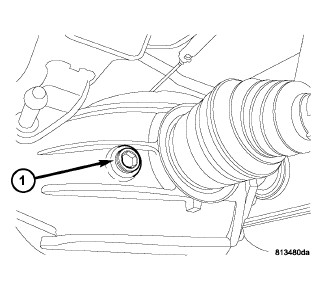

3. Remove fill plug (1) to check and adjust rear axle fluid level. Top off axle with Mopar(R) Gear and Axle Lubricant 75W-140. Reinstall fill plug torque to 60 Nm (44 ft. lbs.) torque.
