Pinion Seal - Removal

REMOVAL

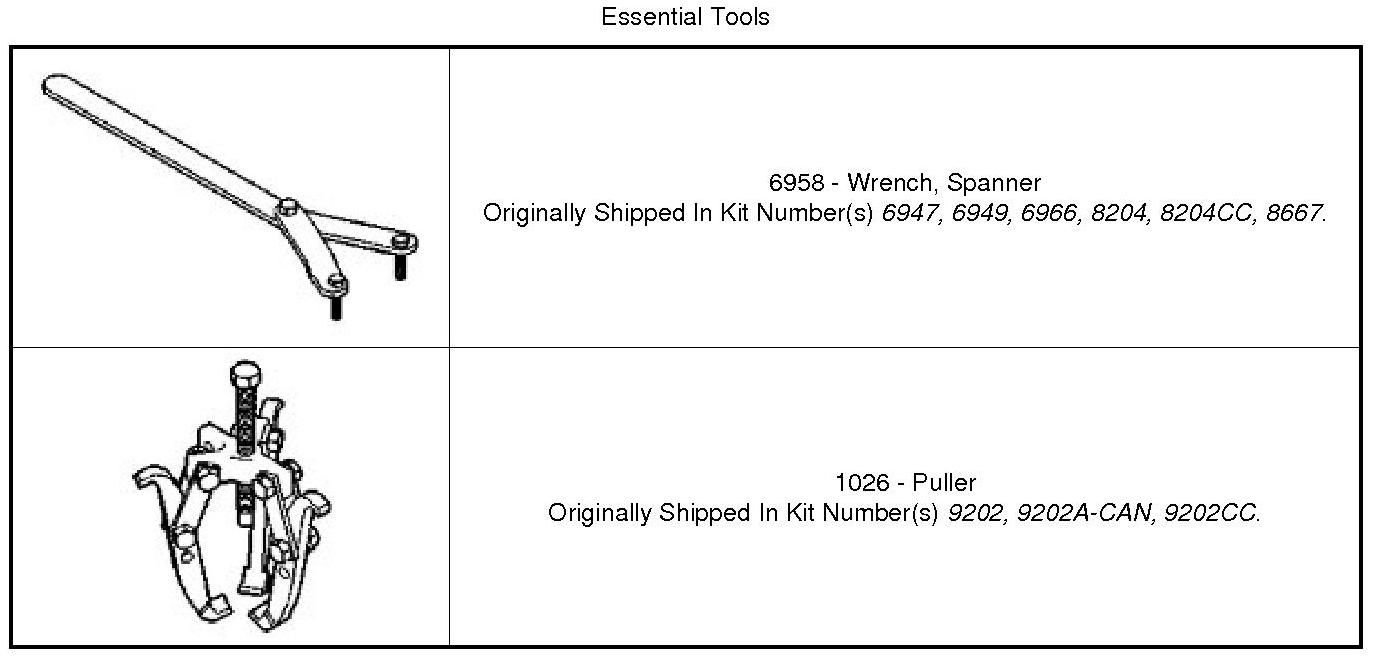

Special Tools:










1. Remove propeller shaft and heat shield.Propeller Shaft - Removal
2. Using Spanner Wrench (2)(Figure 1), remove pinion flange nut.

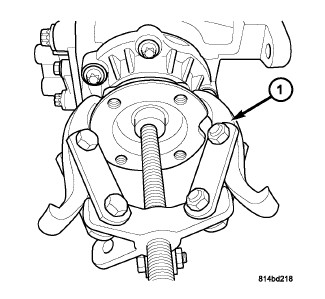

3. Using Puller (1)(Figure 2), remove pinion flange.
4. Remove pinion flange seal with suitable screwdriver and discard.
