Valve Body - Installation

INSTALLATION

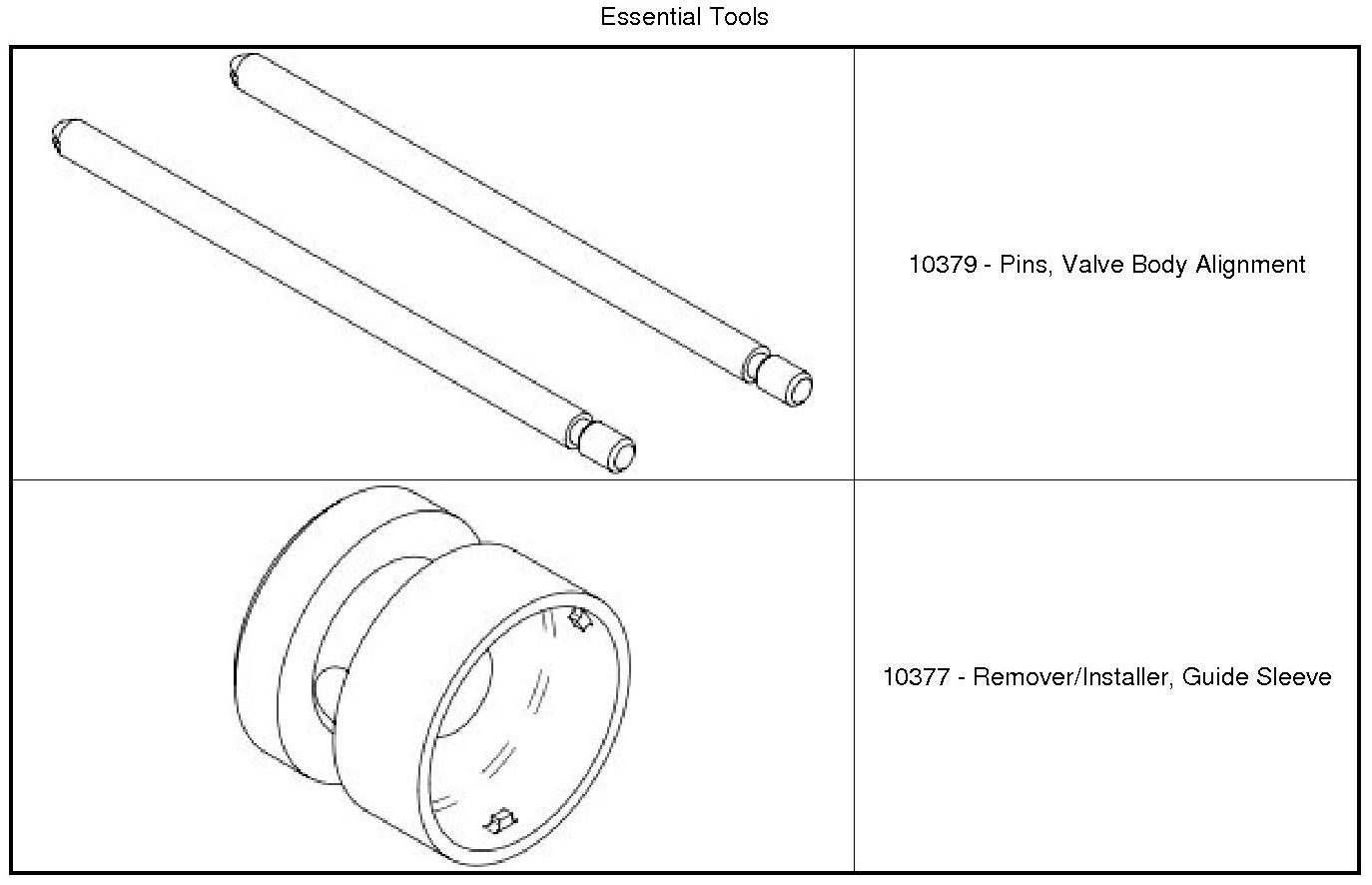

Special Tools:






CAUTION: The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES . Failure to follow these instructions may result in damage to the TCM/TCMA.





1. Install the fluid port (1) with new O-rings (2) and seal (3) to the valve body.





2. Install the valve body assembly to the transmission using the previously installed (1) (10379) as a guide.
3. Use an appropriate tool on one of the alignment pins to assist in holding the valve body in position while installing the remaining fasteners.





4. Install the valve body assembly retaining bolts not including 16-18 and hand tighten.
5. Remove the pins and install the remaining bolts.





6. Using (10377) (1) carefully install the electrical harness insulator (2) to the transmission case (3).





7. Lock the electrical connector lock (2) to the internal harness end.
8. Install the sensor (4) to the case install the retaining bolt (1) and tighten to 8 Nm (71 in. lbs.).
9. Install the valve body assembly end retainer bolts (3) and hand tighten.





10. Tighten the valve body fasteners to 8 Nm (71 in. lbs.).





11. Remove the tie strap and return the manual release lever (1) to the original position, tighten the fastener (2) to 35 Nm (26 ft. lbs.).





12. Install the oil pan and gasket.
13. Install the thirteen oil pan retaining bolts and tighten the fasteners to 10 Nm (89 in. lbs.) using the sequence given.




14. Install bolts (1) attaching crossmember to frame and Install cross member. Tighten the fasteners to 65 Nm (48 ft. lbs.).
15. Install bolts (2) securing rear support and cushion to the cross member and Install. Tighten the fasteners to 65 Nm (48 ft. lbs.).





16. Connect plug connector (1).





17. Turn the locking mechanism (1) of the harness plug clockwise and lock in place.
18. Perform the TRANSMISSION FILL AFTER SERVICE procedure . Transmission Fill After Service
19. Remove the supports and lower the vehicle.
20. Perform the TCM ADAPTATION 8HP45
