Floor Mount

FLOOR MOUNT

1. Shift transmission into PARK.
2. Raise vehicle.




3. Remove the gearshift cable retaining clip (4) (if equipped).
4. Disengage the gearshift cable (1) eyelet at transmission manual shift lever (3) and pull cable out of the mounting bracket (2).

5. Lower the vehicle.
6. Remove the floor console Floor Console - Removal as necessary to access the shift mechanism and cables.
7. If necessary, remove the bolts holding the shield, covering the gearshift and park lock cables, to the floorpan and remove the shield.

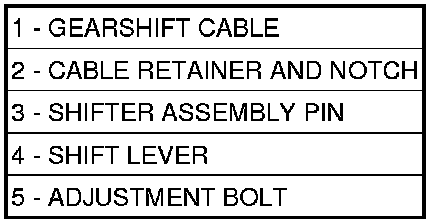

8. Remove the gearshift cable (1) from the shift lever pin (3).
9. Remove the gearshift cable retainer (2) from the notch (2) in the shifter assembly.










10. From under the hood, remove the shift cable grommet (2) from the dash panel.
11. Remove gearshift cable (1) from vehicle.
