Manual Park Release Lever - Installation

INSTALLATION





1. Connect the cable to the lever.

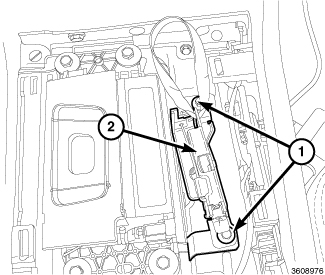

2. Install the bolts (1) securing the lever mechanism (2) to the air ducting and Tighten to 10 Nm (89 in. lb.).





3. Connect the cable to the housing.
4. Install the shifter bezel.
5. Connect the negative battery cable.
