Transmission Oil Pump - Disassembly

DISASSEMBLY

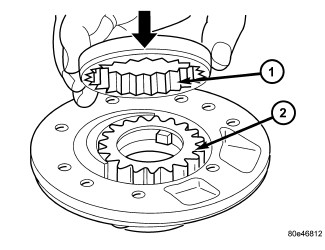

1. Remove pump gears (1 and 2)(Figure 1) from pump housing.










2. Remove the inner oil pump seal (1)(Figure 2).
3. Replace the outer oil pump O-ring (2)(Figure 2).
