Speed Sensor - Description

DESCRIPTION










CAUTION: The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES . Failure to follow these instructions may result in damage to the TCM/TCMA.

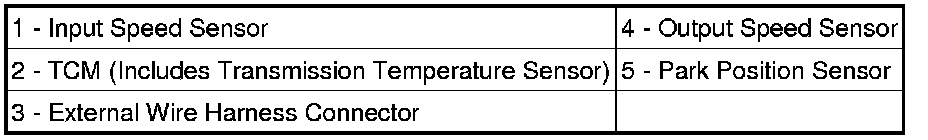

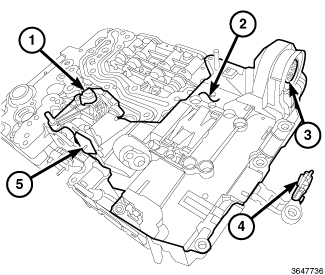

The input speed sensor (1) and the output speed sensor (4) are integrated components of the TCMA and not serviced individually.
