Torque Converter Hub Seal - Installation

INSTALLATION

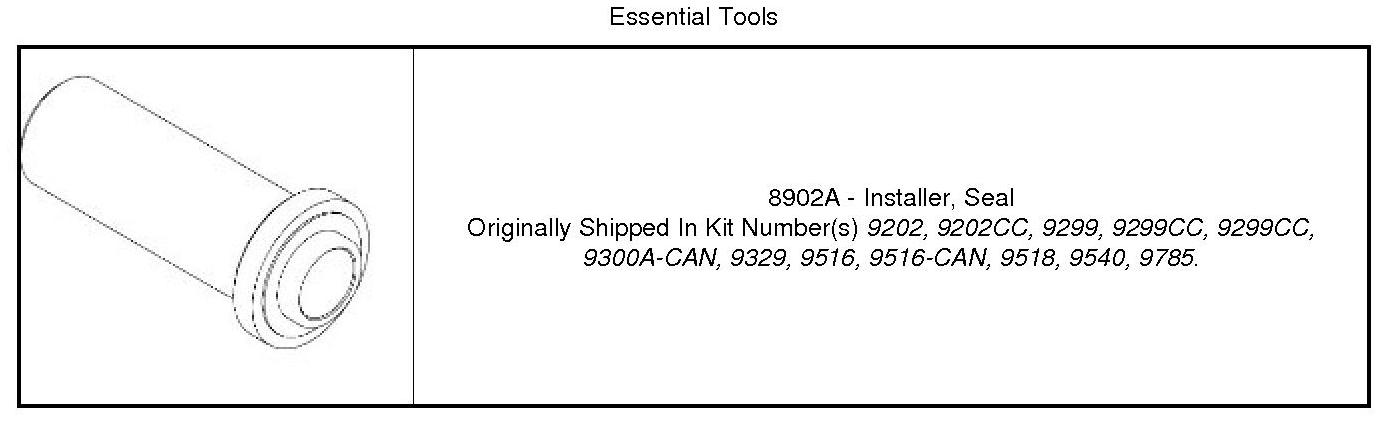

Special Tools:

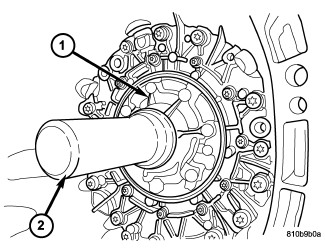

1. Position the torque converter hub seal (1)(Figure 1) over the input shaft and against the transmission oil pump.










2. Using Seal Installer (2)(Figure 2), install a new torque converter hub seal.
3. Install the torque converter Torque Converter - Installation.
