Output Shaft Seal - Installation

INSTALLATION

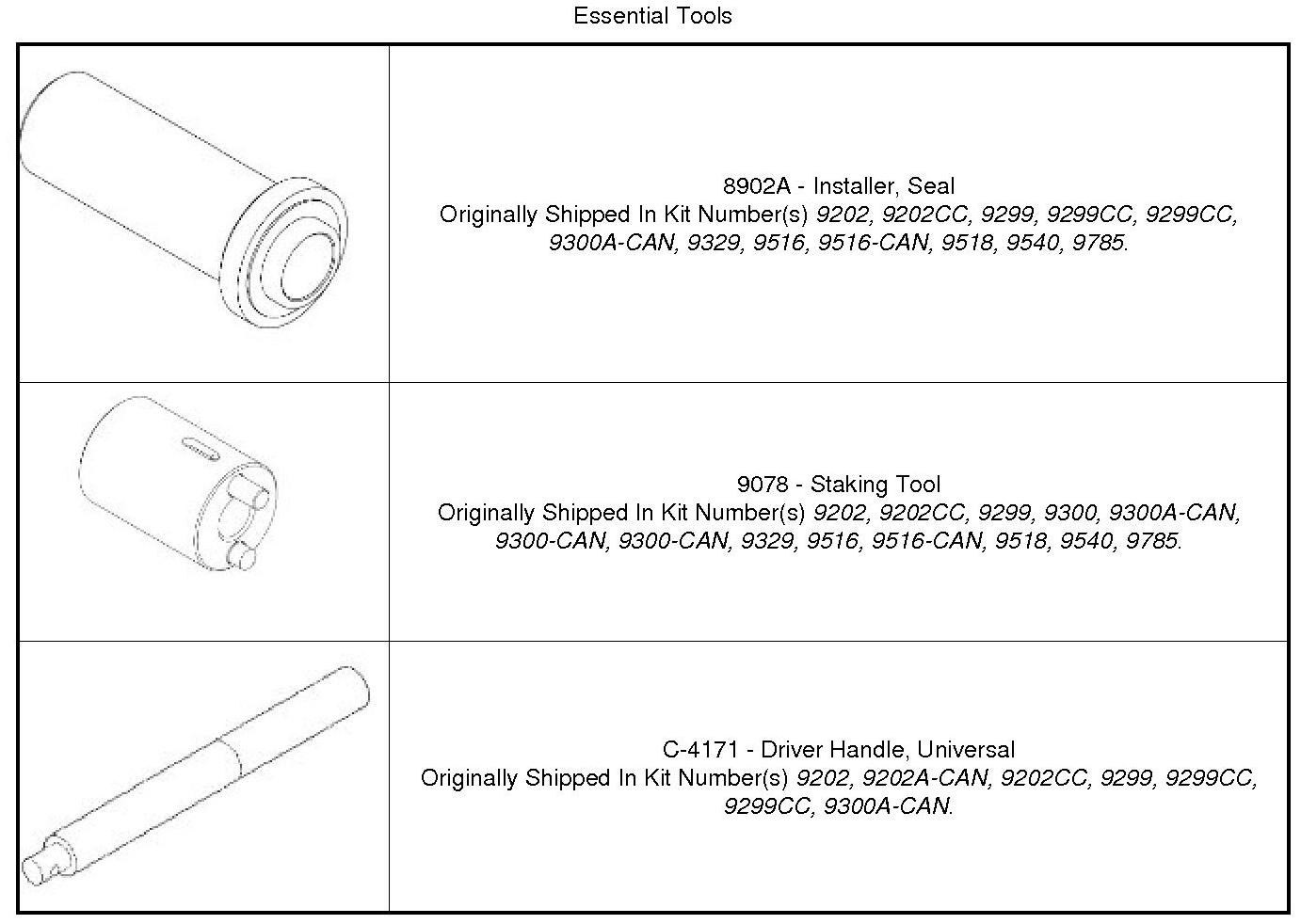

Special Tools:















1. Position the new output shaft seal over the output shaft and against the transmission case.
2. Use Seal Installer (1)(Figure 1) to install the seal.
3. Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut.

NOTE: When installing the propeller shaft flange be certain the shim remained on the output shaft.

4. Install the propeller shaft flange onto the output shaft and install an new flange nut. Tighten the flange nut, with a 30 mm 12 point socket, to 200 Nm (147.5 ft.lbs.).










5. Stake the output shaft nut to the output shaft as follows.Place the Staking Tool (2) and Driver Handle onto the output shaft.
6. Rotate the Staking Tool (2) until the alignment pin (3) engages the output shaft notch (4)(Figure 2).

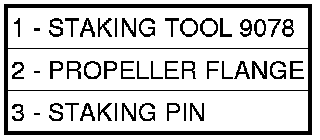

7. Press downward on the staking tool until the staking pin (3) contacts the output shaft nut flange (2)(Figure 3).
8. Strike the Driver handle with a suitable hammer until the output shaft nut is securely staked to the output shaft.
9. Install the propeller shaft Propeller Shaft - Installation.
