Fill Tube Seal - Removal

REMOVAL










1. Lift and support the vehicle.

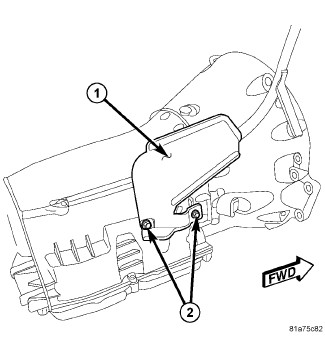

2. Remove water shield bolts and water shield (if equipped).

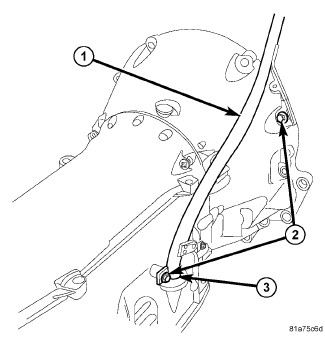

Figure 2 - TYPICAL FILL TUBE BOLTS





3. Remove the transmission fill tube bolts (2).
4. Lift the transmission fill tube out of the transmission case.
5. Using a small pry tool remove the transmission fill tube seal.
