Torque Converter Hub Seal - Removal
Torque Converter Hub Seal - Removal
REMOVAL

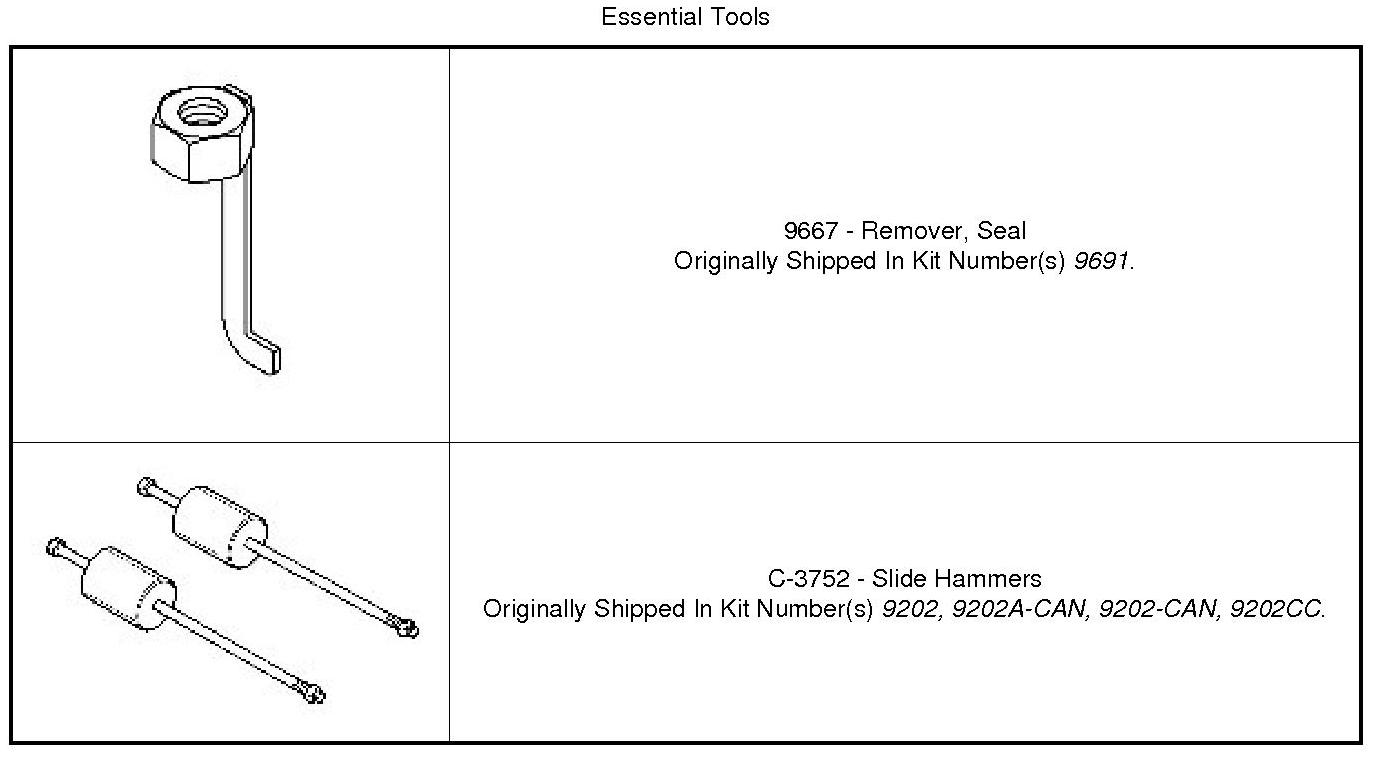

Special Tools:
1.
Remove the torque converter
Torque Converter - Removal
.
2.
Using (9667) and (C-3752) remove the torque converter hub seal.
