Torque Converter Hub Seal - Installation






INSTALLATION

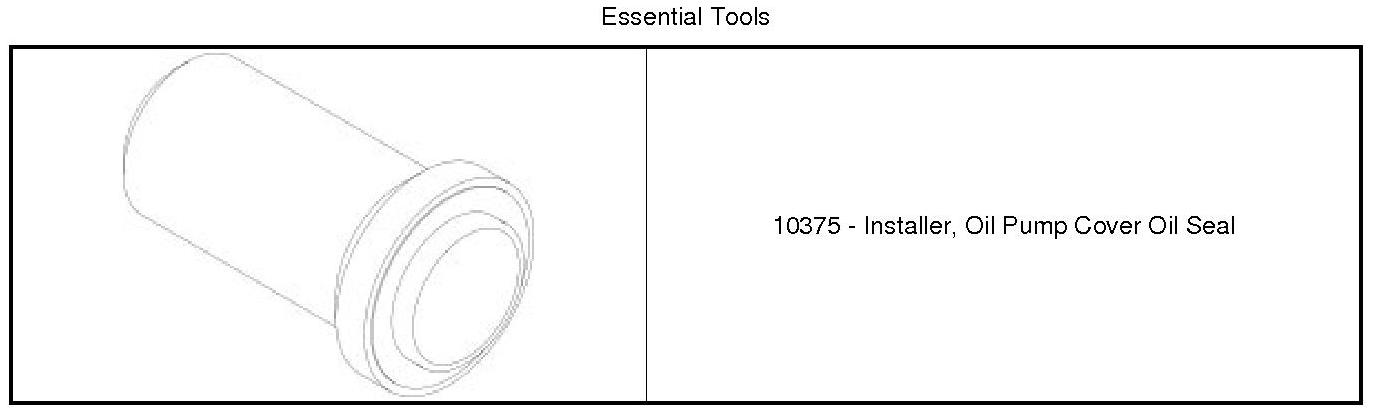

Special Tools:

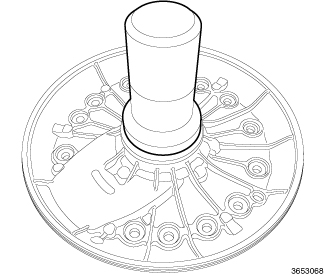

1. Position the torque converter hub seal over the input shaft and against the transmission oil pump cover.
2. Using (10375) install a new torque converter hub seal.
3. Install the torque converter Torque Converter - Installation.
