Removal

REMOVAL

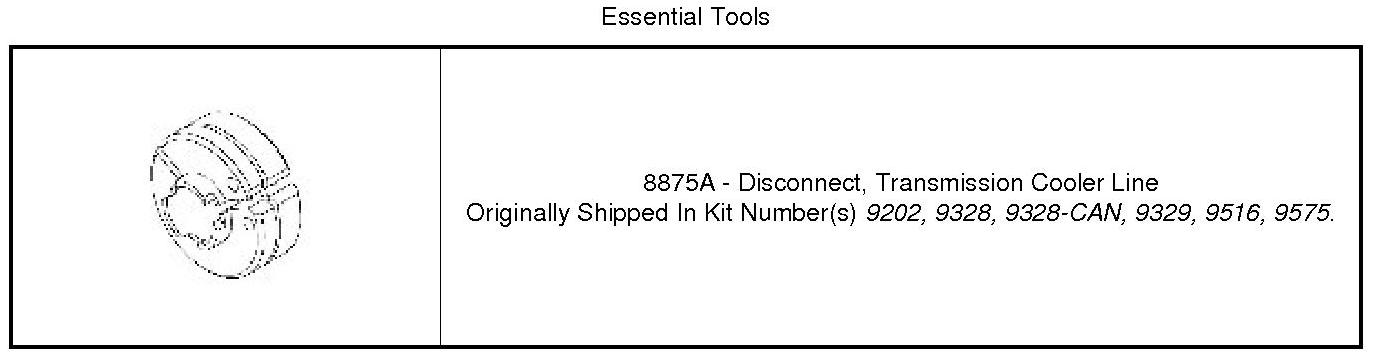

Special Tools:






1. Remove upper radiator closure panels
2. Using Release Tool , remove transmission cooler lines from transmission cooler Service and Repair.
3. Raise vehicle on hoist.
4. Remove front transmission cooler lines from the thermal bypass valve block.
5. Remove rear transmission cooler lines from the thermal bypass valve block
6. Remove the transmission cooler lines from the transmission.
