WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE: Before starting this procedure refer to the MODULE/PROGRAMMING ORDER REPLACEMENT GUIDE chart for the correct order in which to replace and program the modules. Programming and Relearning





1. Disconnect the negative battery cable.
2. Remove the steering column Steering Column - Removal.

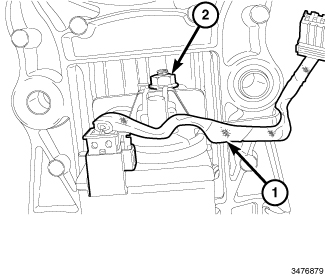

3. Remove the steering column lock module retainer (2).
4. Remove the steering column lock module jumper harness (1).






NOTE: When knocking the access door off it is important that you are parallel to the module to prevent damage to the internal gears.

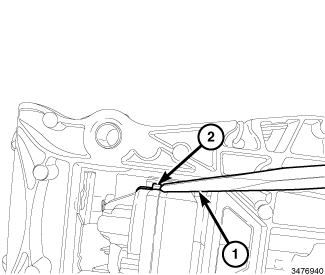

5. Using a cold chisel (1) or equivalent knock the access door (2) off of the steering column lock module.






NOTE: Rotate the gear until it stops.

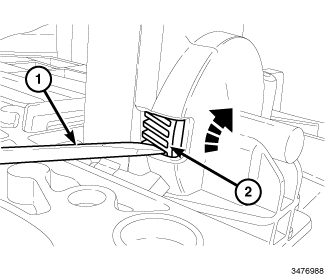

6. Using a pocket screw driver (1) or equivalent rotate the gear (2) away from the steering column to unlock the module.

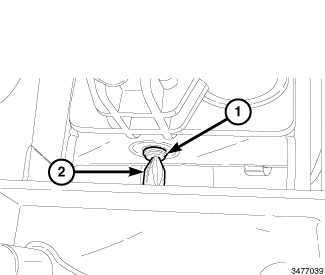

7. Using a pocket screw driver (2) or equivalent push in the threaded stud (1).
8. Remove the steering column lock module.
