Rear

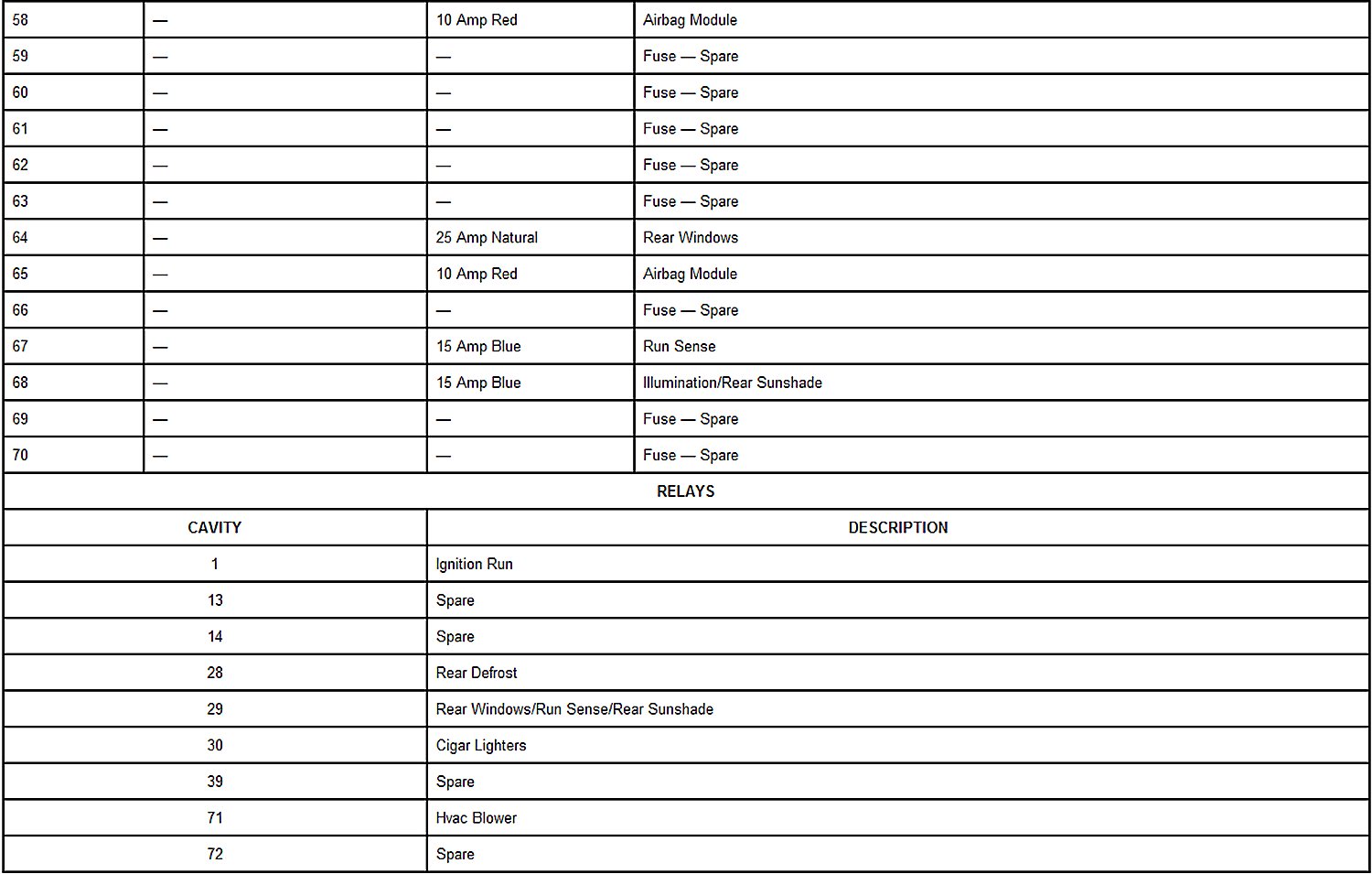

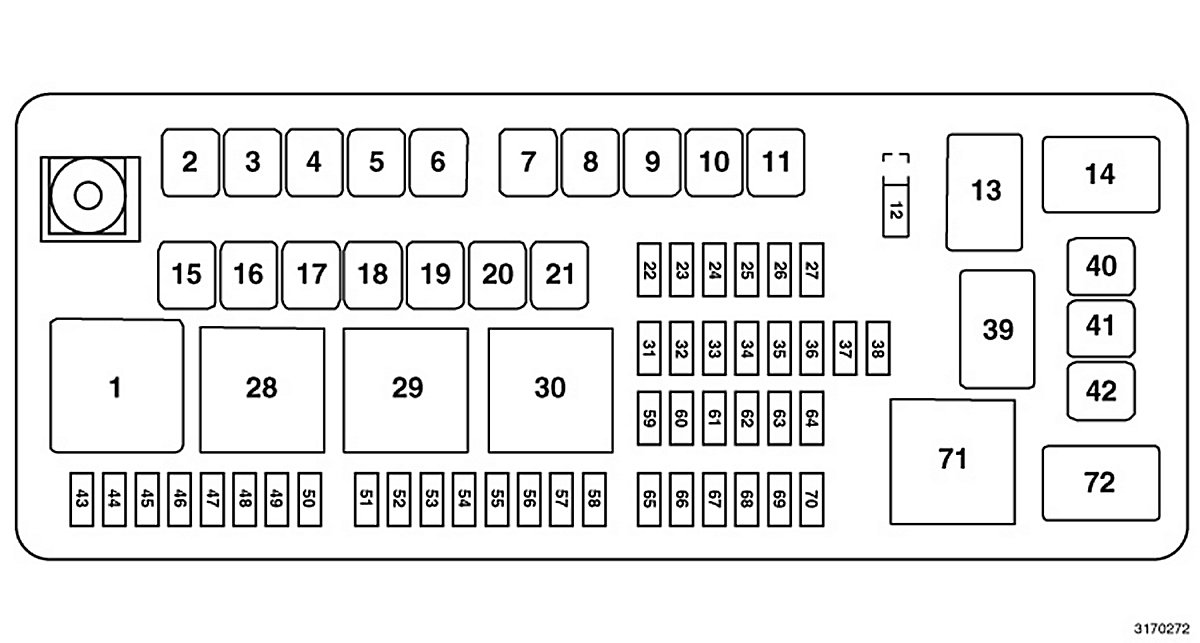

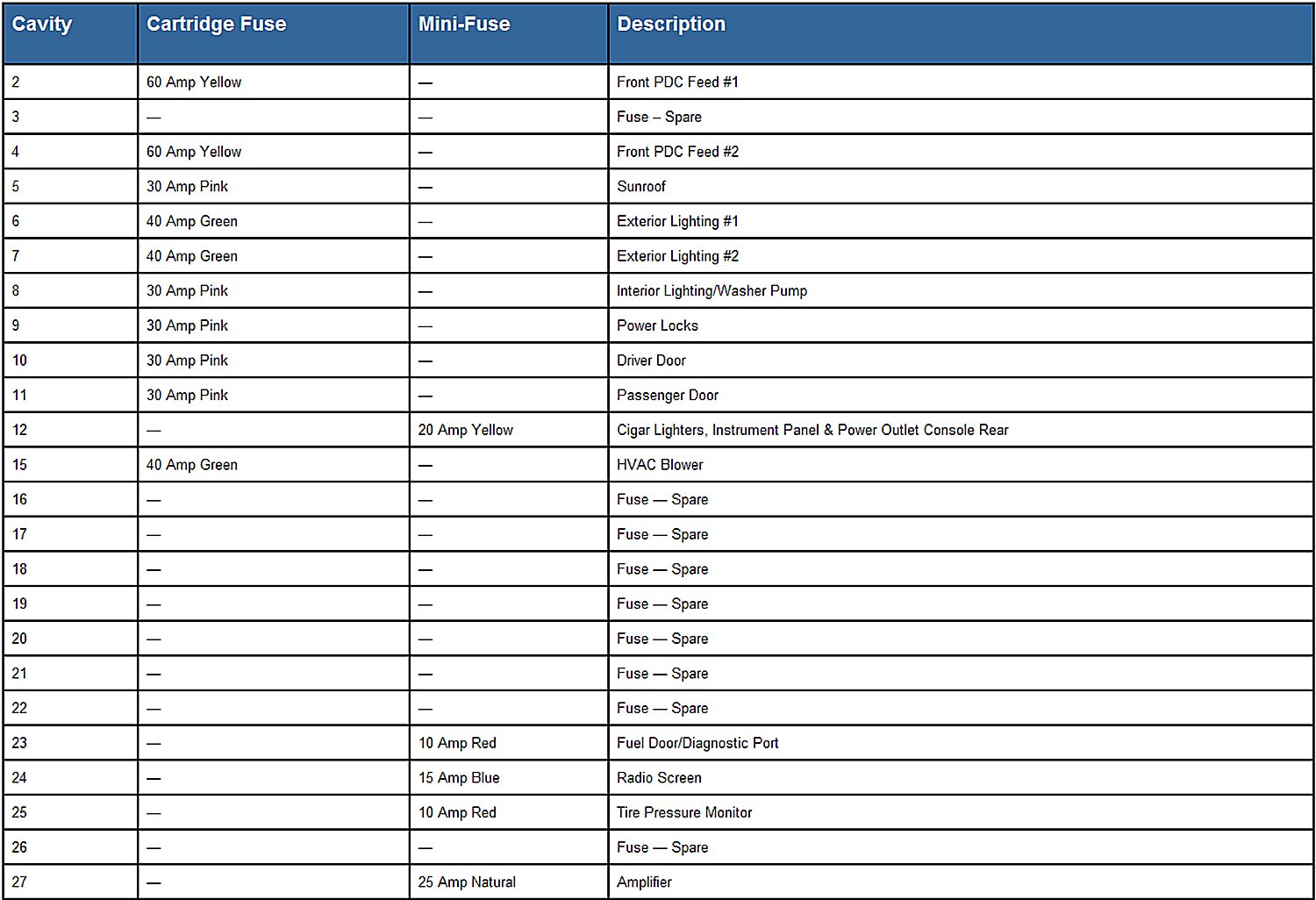

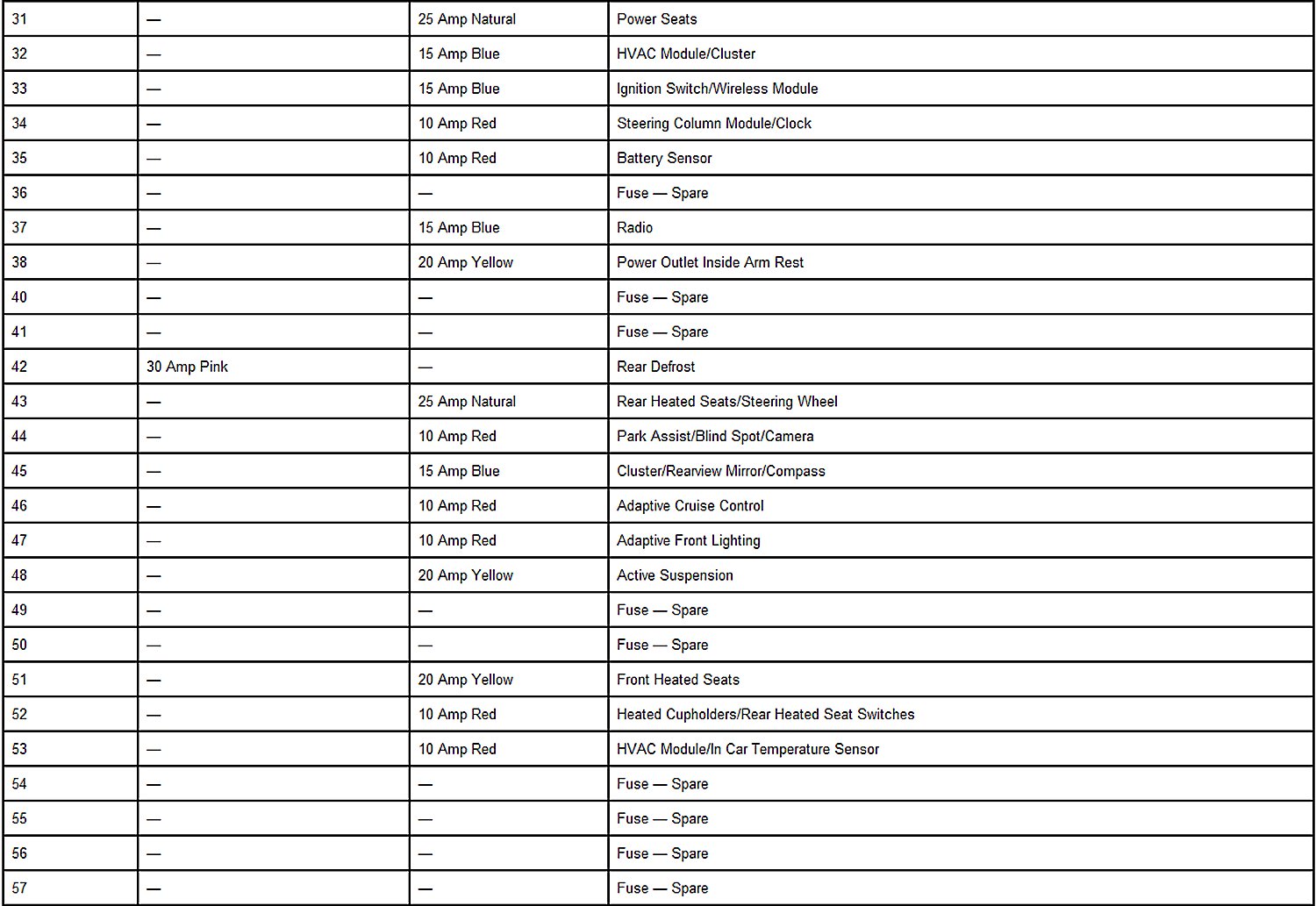

Rear Power Distribution Center Fuses

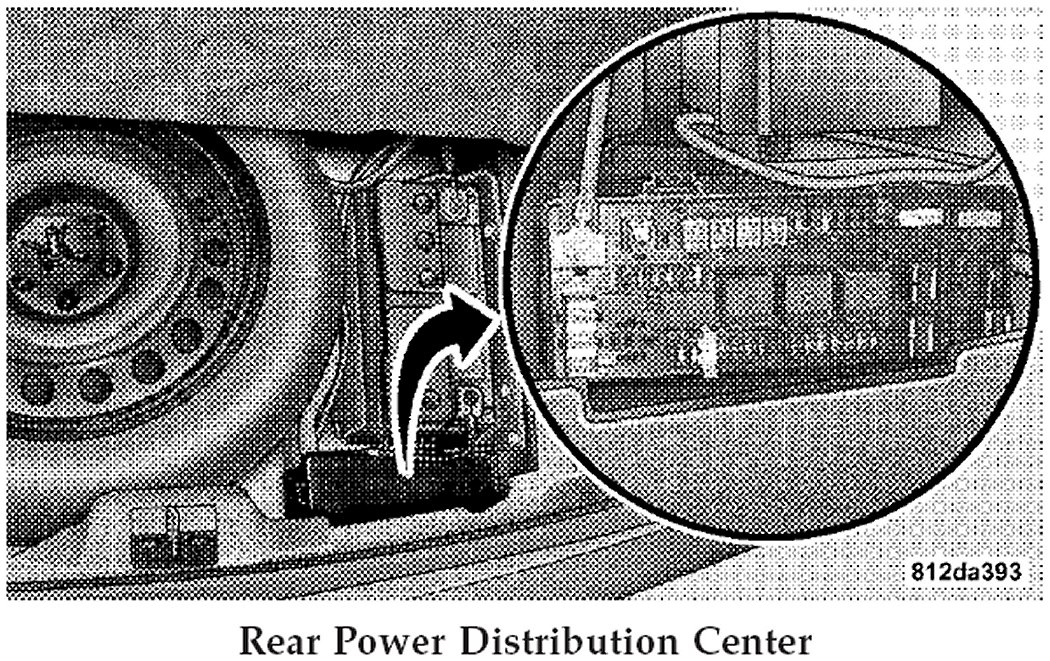

The rear power distribution center is located in the trunk under the spare tire access panel.
