Home
>>
Chrysler
>>
2012
>>
300 AWD V6-3.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Axle Shaft Assembly
>>
Rear Half Shaft
Rear Half Shaft
SPECIFICATIONS

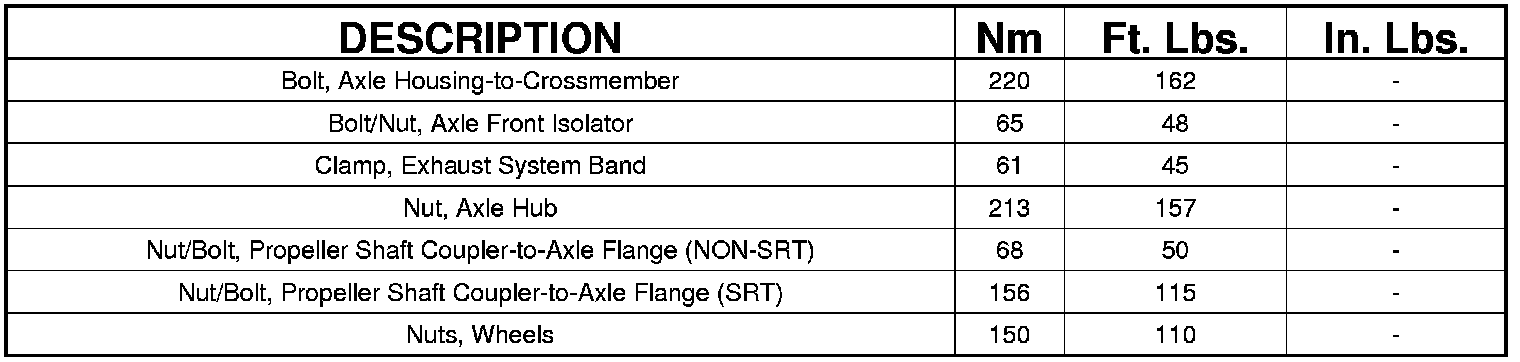

TORQUE SPECIFICATIONS
