8HP45 Automatic Transmission
8HP45 Automatic Transmission
SPECIFICATIONS

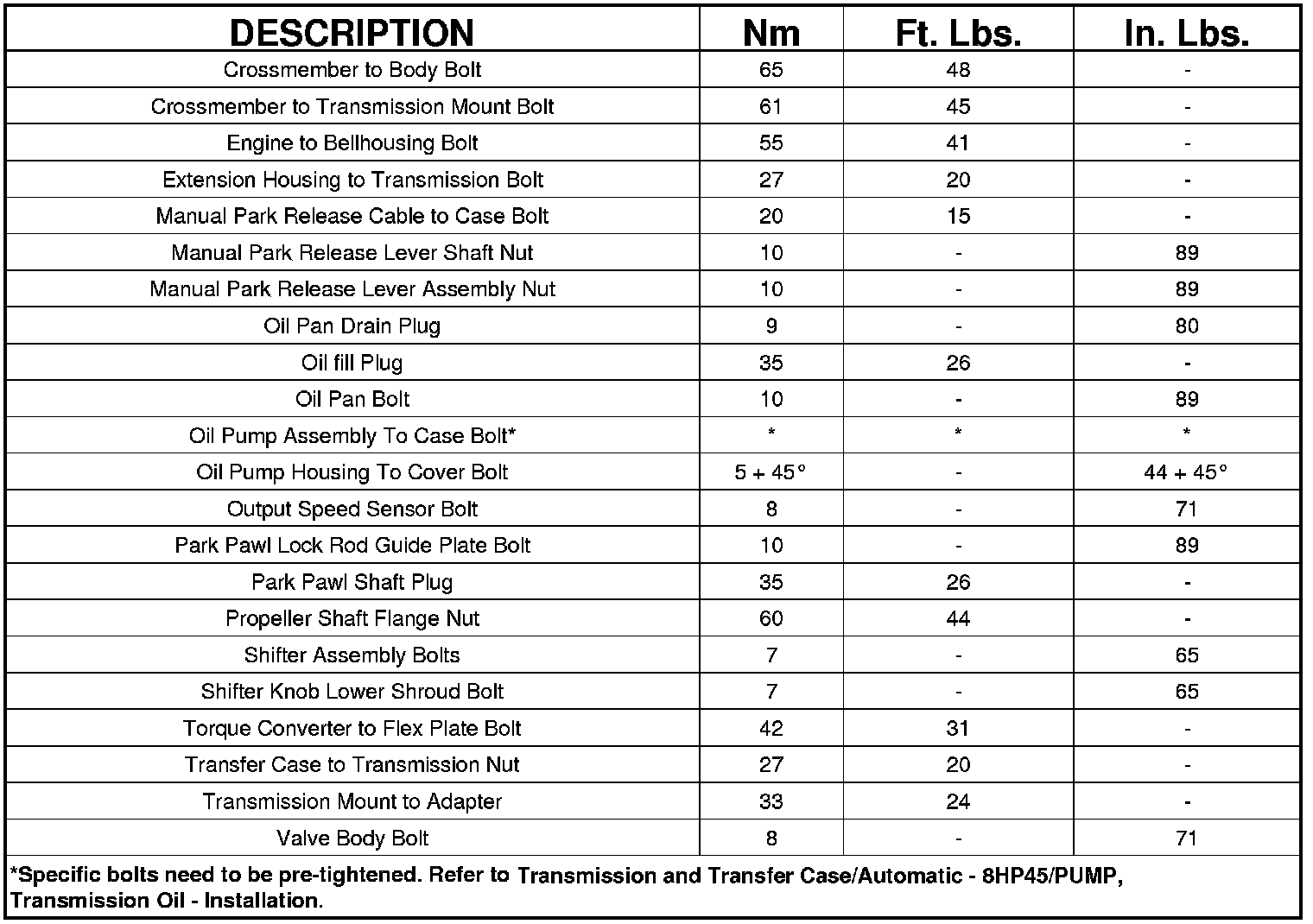

FASTENER TIGHTENING SPECIFICATIONS
