Rear

REMOVAL

1. Raise and support vehicle. Maintenance






NOTE: To release sensor connector from body wiring harness connector (1) in following step, move retaining clip (2) as indicated here, then pull sensor connector (3) outward.

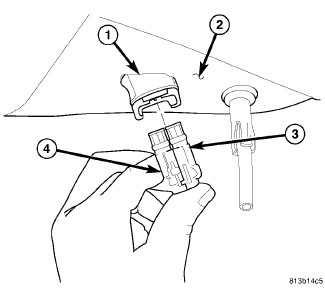

2. Remove sensor connectors (3 and 4) from body wiring harness connector (1) located in luggage compartment floor pan (2).
3. Separate left sensor connector (4) from right sensor connector (3).





4. If removing left sensor, unclip sensor cable (3) from routing clip near body connector (1).

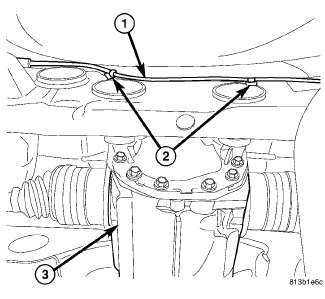

5. If removing left sensor, unclip sensor cable (1) from routing clips (2) along rear of crossmember near rear differential (3).

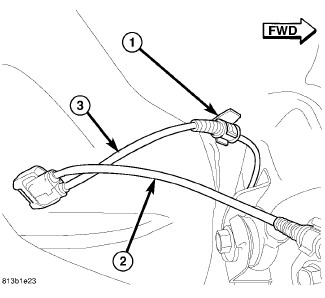

6. If removing left sensor, unclip sensor cable (2) from routing clip (1) above toe link mount on rear crossmember.

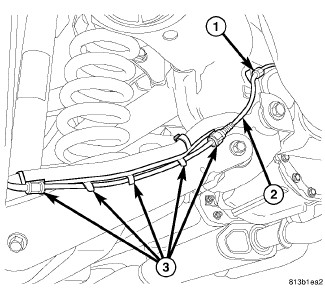

7. Unclip sensor cable (2) from routing clips (3) along toe link.





8. Unclip sensor cable at rear brake rotor shield (1).

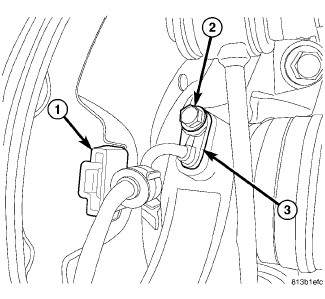

9. Remove screw (2) fastening sensor head (3) to rear knuckle.
10. Remove wheel speed sensor.
