Bracket

BRACKET

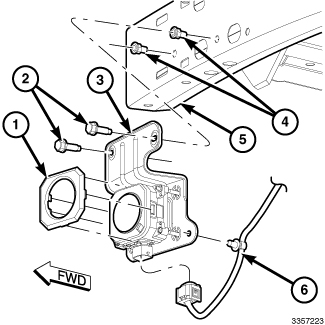

1. Remove the adaptive speed control (also known as the Adaptive Cruise Control/ACC) sensor from the mounting bracket (3). Sensor
2. Remove the two screws (2) that secure the bracket to the front bumper support bar (5).
3. Disengage the retainer that secures the Front End Module (FEM) wire harness (6) to the back of the bracket.
4. Remove the mounting bracket from the bumper support bar.

NOTE: The three molded plastic ball socket clips in the ACC sensor mounting bracket MUST be removed, discarded and replaced with new ball socket clips any time the sensor is removed from the bracket.

5. Remove the three molded plastic ball socket clips from the back side of the ACC sensor mounting bracket and discard. The clips are removed by rotating them counterclockwise.
